Vegetable washing machine

The Allround vegetable washing machines are designed to operate with a water basin. In this water basin, the water used in the commercial vegetable washer is recirculated to be used again. The washing drum of the machine is designed to agitate produce in the machine. In combination with water, this process gives an optimal cleaning result.

Types and specifications of vegetable washing machine

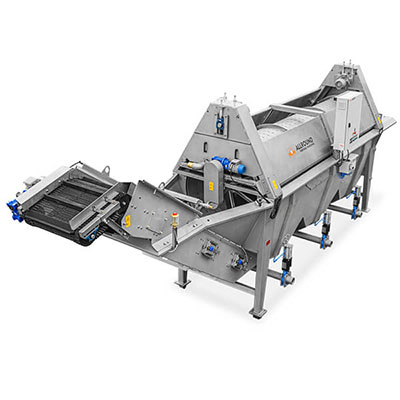

U Range

The U range washing machines has an outfeed web belt with cleats. The outfeed height of the vegetable wash line is therefore adjustable, and the excess water falls through the web.

See More Images Watch Video

U 170

Length drum 1700 mm
Diameter drum 800 mm
Material drum stainless steel
Length total machine 3700 mm
Drawing
See More Images Watch Video

U 300

Length drum 3000 mm
Diameter drum 1200 mm
Material drum stainless steel
Length total machine 6400 mm
Drawing
See More Images Watch Video

U 450

Length drum 4500 mm
Diameter drum 1200 mm
Material drum stainless steel
Length total machine 8400 mm
Drawing
See More Images Watch Video

U 500

Length drum 5000 mm
Diameter drum 1600 mm
Material drum stainless steel
Length total machine 9440 mm
Drawing
See More Images Watch Video

U 600

Length drum 6000 mm
Diameter drum 1900 mm
Material drum stainless steel
Length total machine 10440 mm
No drawing

UK Range

The UK range washing machines are designed to operate without a water basin. In this vegetable washing machine we have included a slurry chain which takes out the sludge in the machine. Because of this, the UK type vegetable wash line is particularly suitable to operate with an internal water recirculation system.

washing-machine-uk-450
See More Images Watch Video

UK 450

Length drum 4500 mm
Diameter drum 1200 mm
Material drum stainless steel
Length total machine 8050 mm
Drawing
washing-machine-UK300
See More Images Watch Video

UK 300

Length drum 3000 mm
Diameter drum 1000 mm
Material drum stainless steel
Length total machine 6400 mm
Drawing

PDK Range

​The PDK range washing machines are designed for potatoes that are grown on soil with a lot of clods and stones. In front of the commercial vegetable washer there is a destoner, which cleans your produce of clods and stones. After the destoner, the produce is directly fed to the washing drum of the vegetable processing machine. The vegetable wash line has a slurry chain under the machine. This slurry chain removes sludge from the bottom of the machine. Because of this, the PDK type vegetable washing machine is particularly suitable to operate with an internal water recirculation system.

See More Images Watch Video

PDK 450

Length drum 4500 mm
Diameter drum 1200 mm
Material drum stainless steel
Length total machine 8670 mm
Drawing
See More Images Watch Video

PDK 300

Length drum 3000 mm
Diameter drum 1000 mm
Material drum stainless steel
Length total machine 6310 mm
Drawing

PD Range

​The PD range washing machines are designed to operate with produce that are grown in heavy soil. The PD range has an integrated destoner which cleans your product of clods and stones.

See More Images Watch Video

PD 500

Length drum 5000 mm
Diameter drum 1600 mm
Material drum stainless steel
Length total machine 11000 mm
Drawing

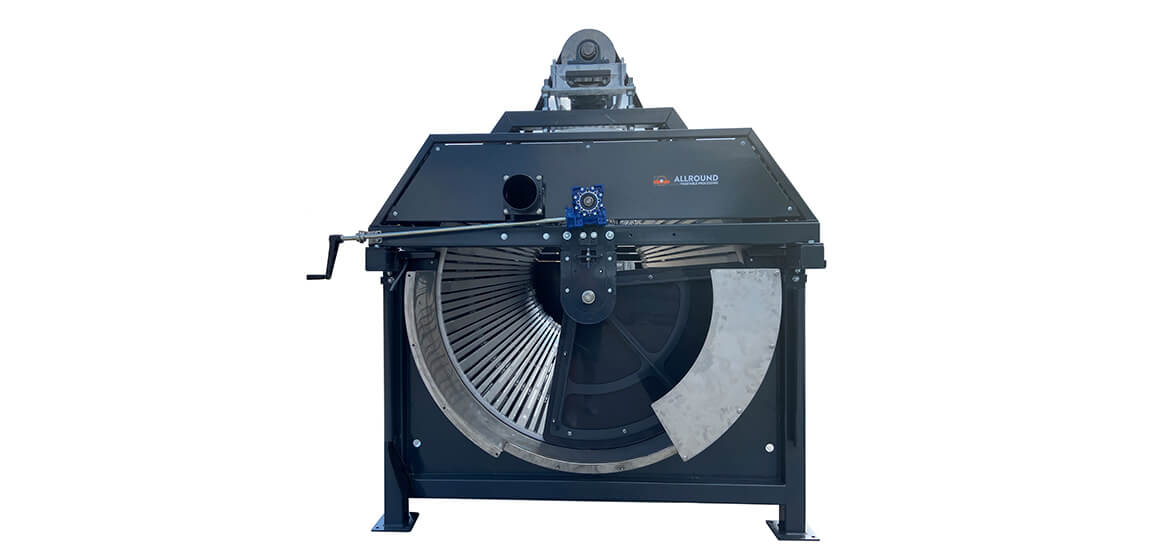

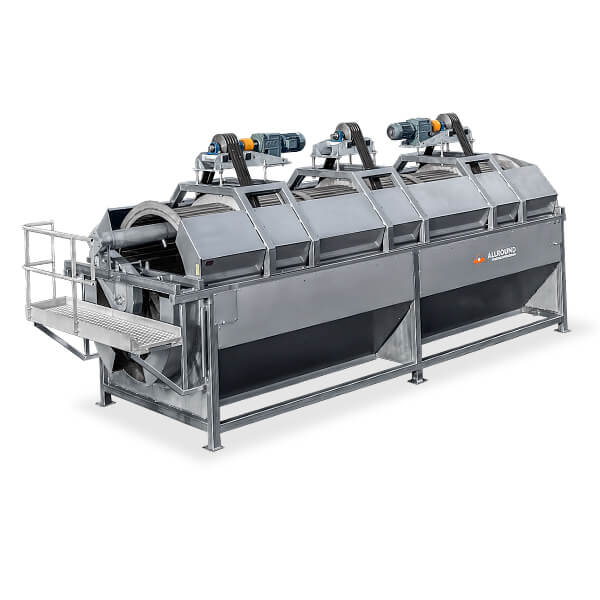

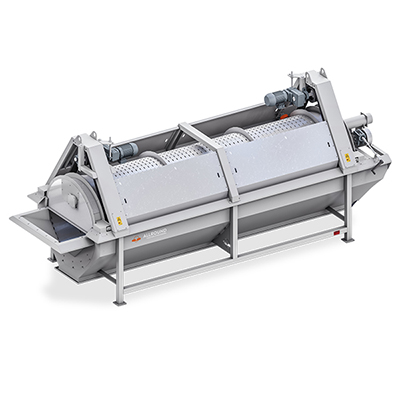

C Range

​The C range is especially designed for companies that mainly process products that are not very vulnerable. That makes this type of vegetable washing machine well suited for carrot processing. This is due to the fact that this commercial vegetable washer is not able to have a layer of water inside the drum. The water cleaning the produce only comes from the spray pipes in the machine. Furthermore, the machine does not have a product outlet belt, but it has an outlet chute. therefore, the machine is ideal for companies that are starting to wash carrots.

See More Images Watch Video

C 300

Length drum 3000 mm
Diameter drum 1000 mm
Material drum stainless steel
Length total machine 3660 mm
Drawing
washing-machine-C500
See More Images Watch Video

C 500

Length drum 5000 mm
Diameter drum 1000 mm
Material drum stainless steel
Length total machine 5340 mm
Drawing

Options

Stainless steel machine

In some exceptional cases, when the machine is used in a place where very high hygiene standards are used, Allround makes your vegetable washing machine from stainless steel.

Pintle rubber in the drum

In some cases, especially with a very sticky soil on the produce, it helps to have more agitation of the produce by adding pintle rubber. Usually pintle rubber is used to clean the small holes of potatoes, but it can also be used to agitate carrots for a better cleaning result.

Brush in the drum

A brush in the drum is used for extra cleaning of the produce. This agitates the produce more for a higher cleaning effect on the produce. Especially heavier soil is cleaned off the produce more effectively when you add a brush to your vegetable wash line.

Electric pneumatic valve for water level adjustment

An electric pneumatic valve for water level adjustment is used to automatically regulate the water level in the vegetable washing machine.

Fan on the outlet belt

In some cases, it is desirable that the produce on the outlet belt is dried a little bit. When this is the case, Allround offers an optional fan on the outlet belt of the commercial vegetable washer.

Recirculation system

If there is no water basin available at the site, the customer can opt for the recirculation system in the vegetable wash line. This system consists of a water bin under the drum with a pump that sends the water back to the spray pipes.

Supply or recirculation pump

Whether a water basin or a recirculation system is used, the water needs to be pumped to the spray pipes. Allround optionally offers these pumps if required.

Estimated capacity
(tons/hour)

 Light soil 170 series 300 series 450 series 500 series
Carrots 1 – 2 3.5 9 21
Baby carrots 1 – 1.5 3 8 14
Potatoes 2 – 3 10 17 36
Parsnips 1 – 1.5 3 6 10
Celeriac 2 3.5 12 16
Red beet 1.5 – 2 3.5 9 19
 Heavy soil 170 series 300 series 450 series 500 series
Carrots 0.6 – 1.2 2.5 6 18
Baby carrots 0.6 – 0.9 2 4 7
Potatoes 1.2 – 1.8 7 14 28
Parsnips 0.6 – 0.9 2 5 9
Celeriac 1.2 3 6 8
Red beet 0.9 – 1.2 3 6 16

Purchase the ideal vegetable wash line for your facility

Do you need a commercial vegetable washer for your production line? We are happy to provide you with the ideal vegetable wash line for your facility at an excellent price-quality ratio. Contact us for more information about the different machines. If needed, our experts can advise you about the vegetable washer that best fits your commercial needs. Contact us by calling +31 228 597777 or send an email to info@allroundvp.nl.
