Project Description

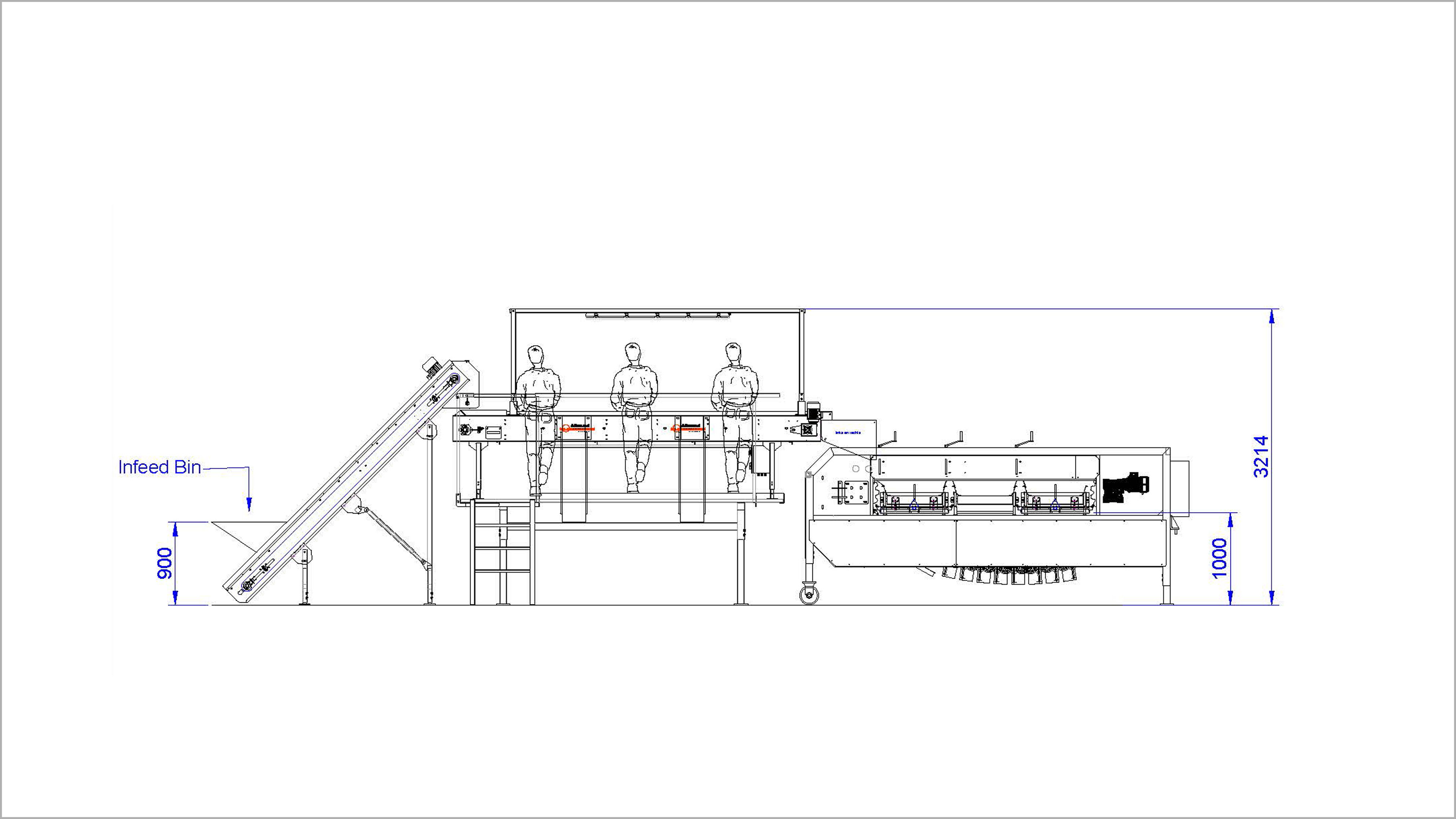

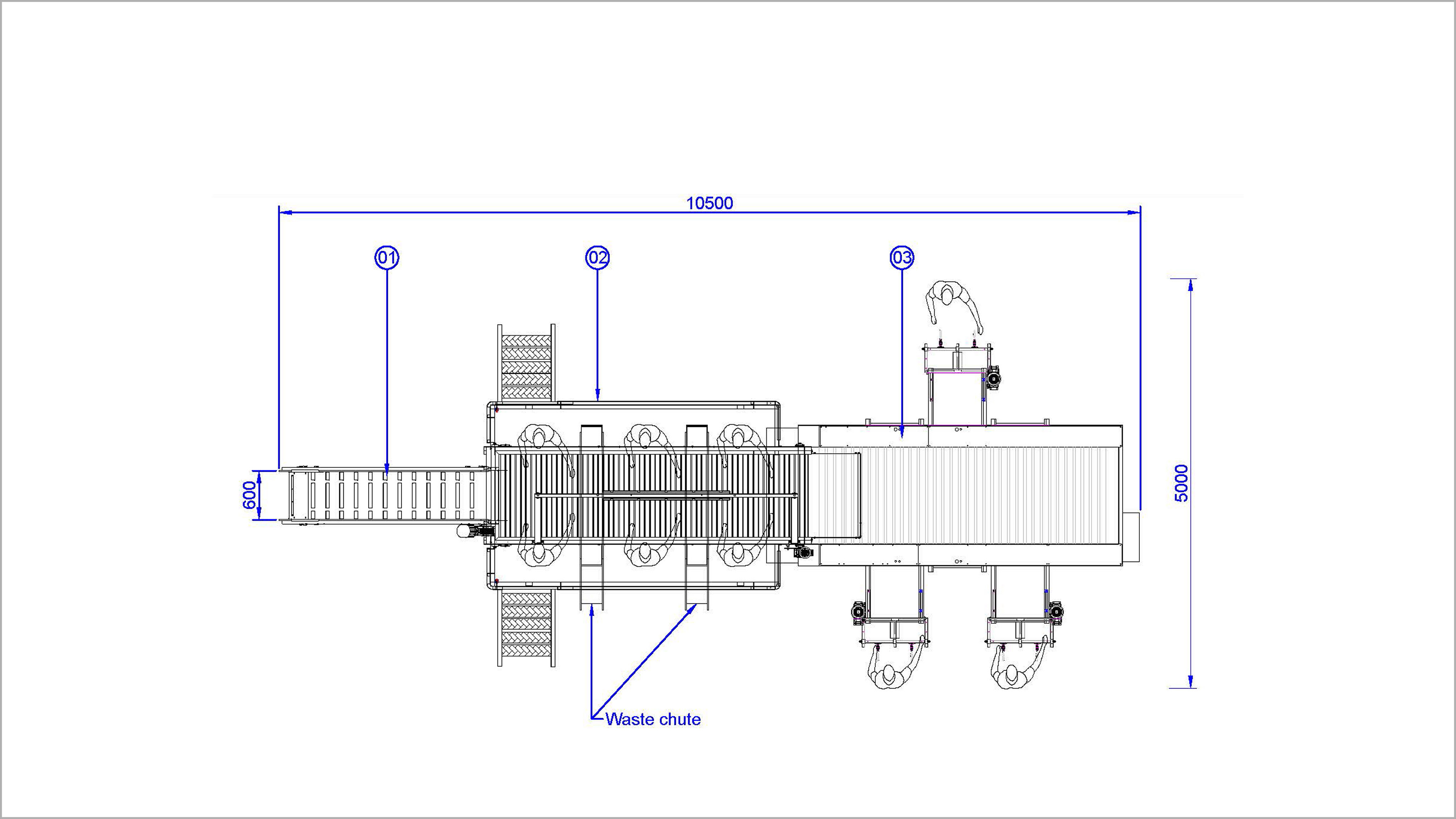

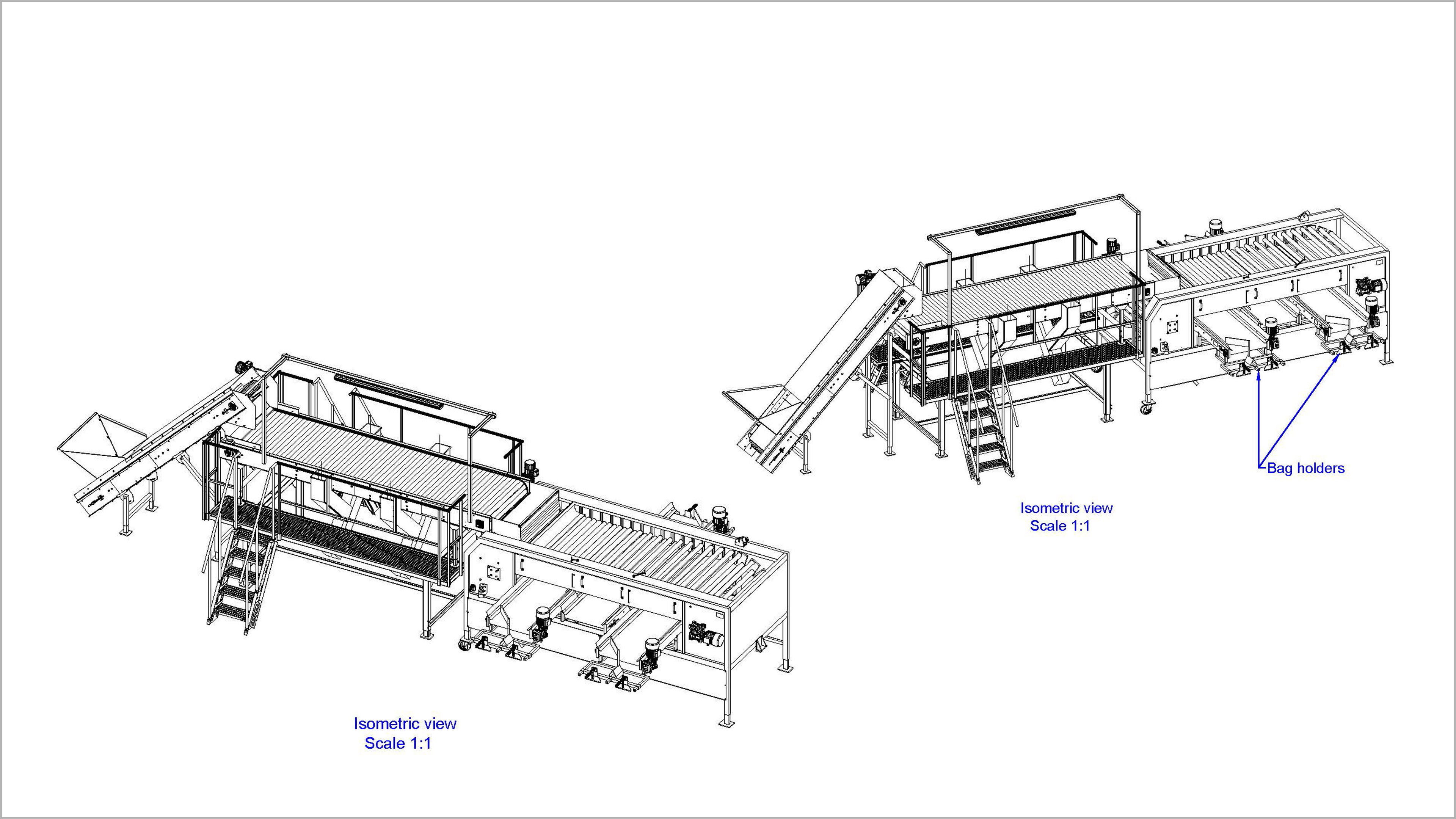

RADIAL GRADING LINE R120 SERIES OVERALL VIEW 3D 2D RADIAL GRADING LINE R120 SERIES TOPVIEW SIDEVIEW 3D 2D ISOMETRICVIEW RADIAL GRADING LINE R120 SERIES 3D 2D SIDEVIEW TOPVIEW ISOMETRICVIEW RADIAL GRADING LINE R120 SERIES 3D 2D ISOMETRICVIEW TOPVIEW SIDEVIEW

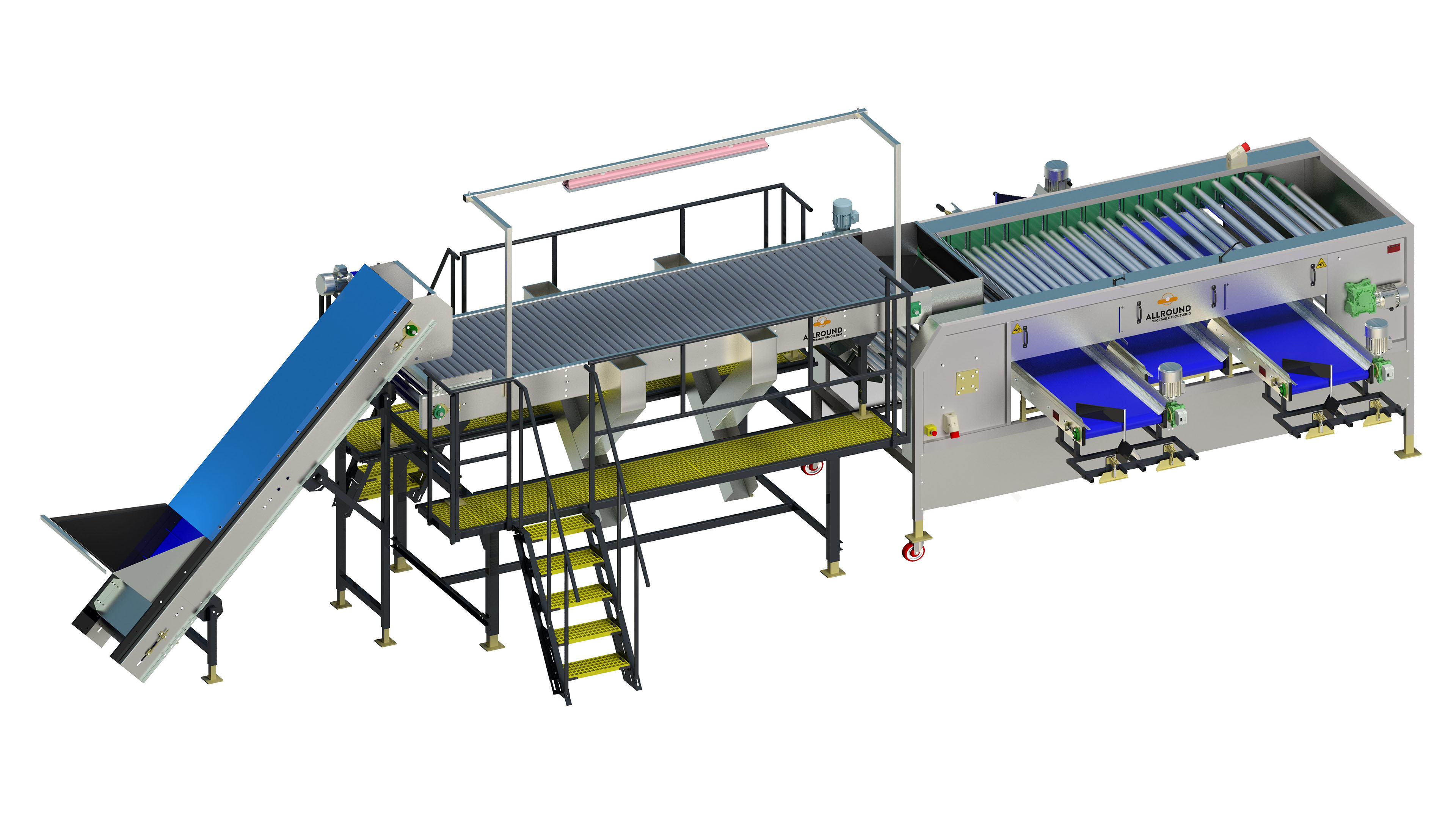

Radial grading line R120 series

Category: Potato lines, Onion lines

Drawing






Estimated capacity (tons/hour)

 Product Small Big
 Potatoes 8 10
 Onions 8 10

Machinary list

Machines Type
Elevator EL 60-350
Roller inspection table  RI 100-400
Radial grader  R 120-70-3
