Potato washing, brushing & grading line (2)
Category: Potato lines

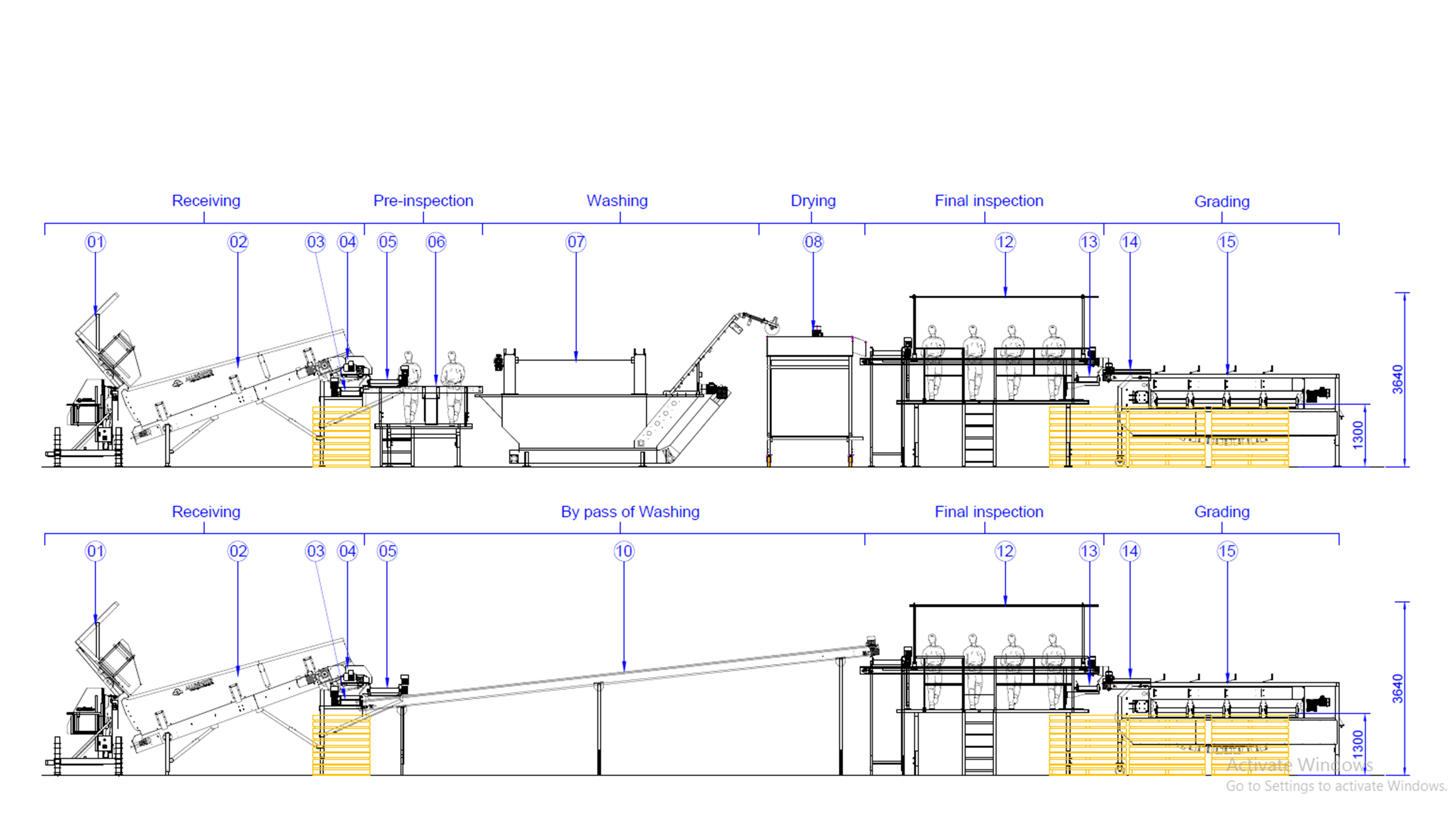

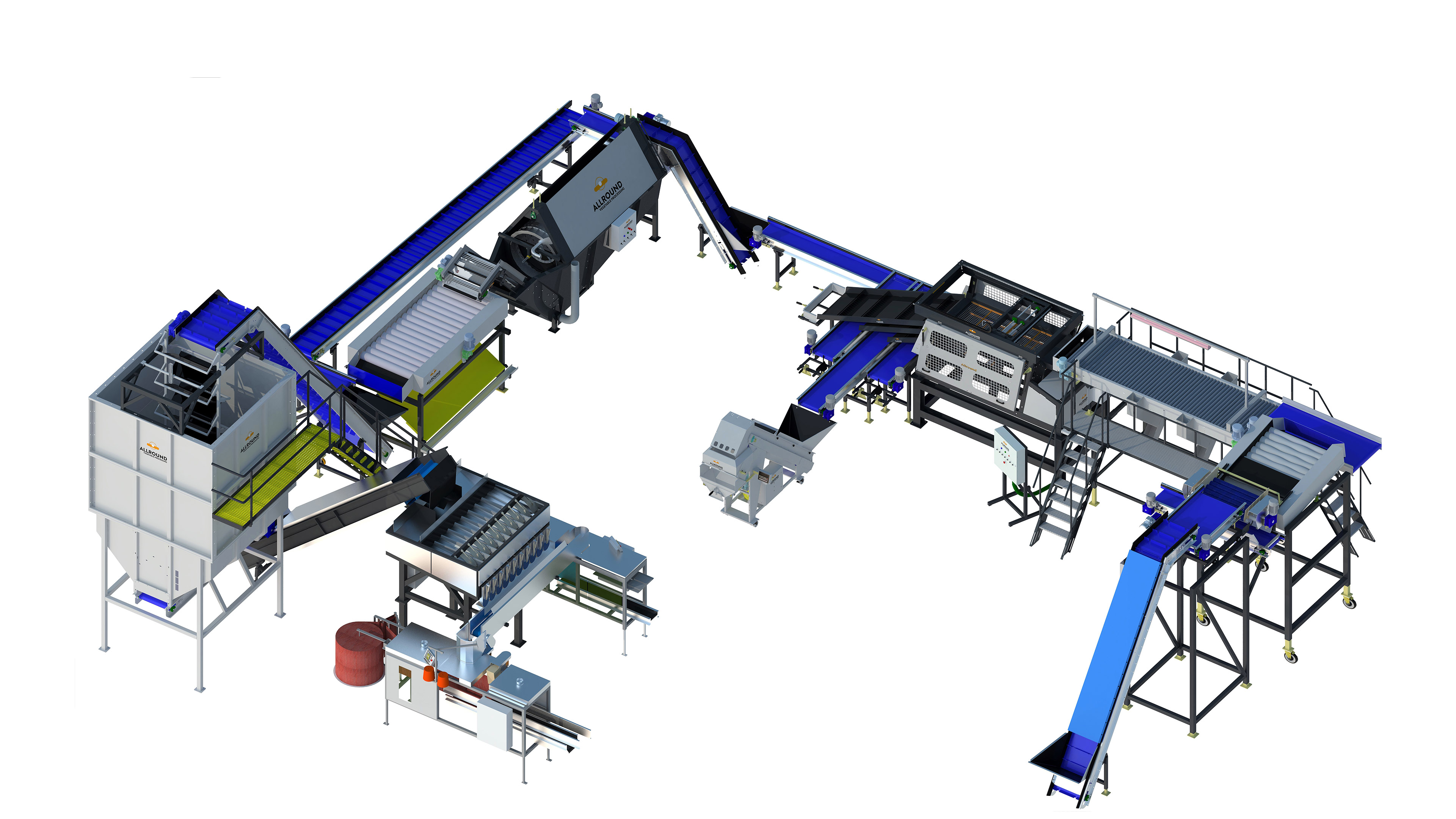

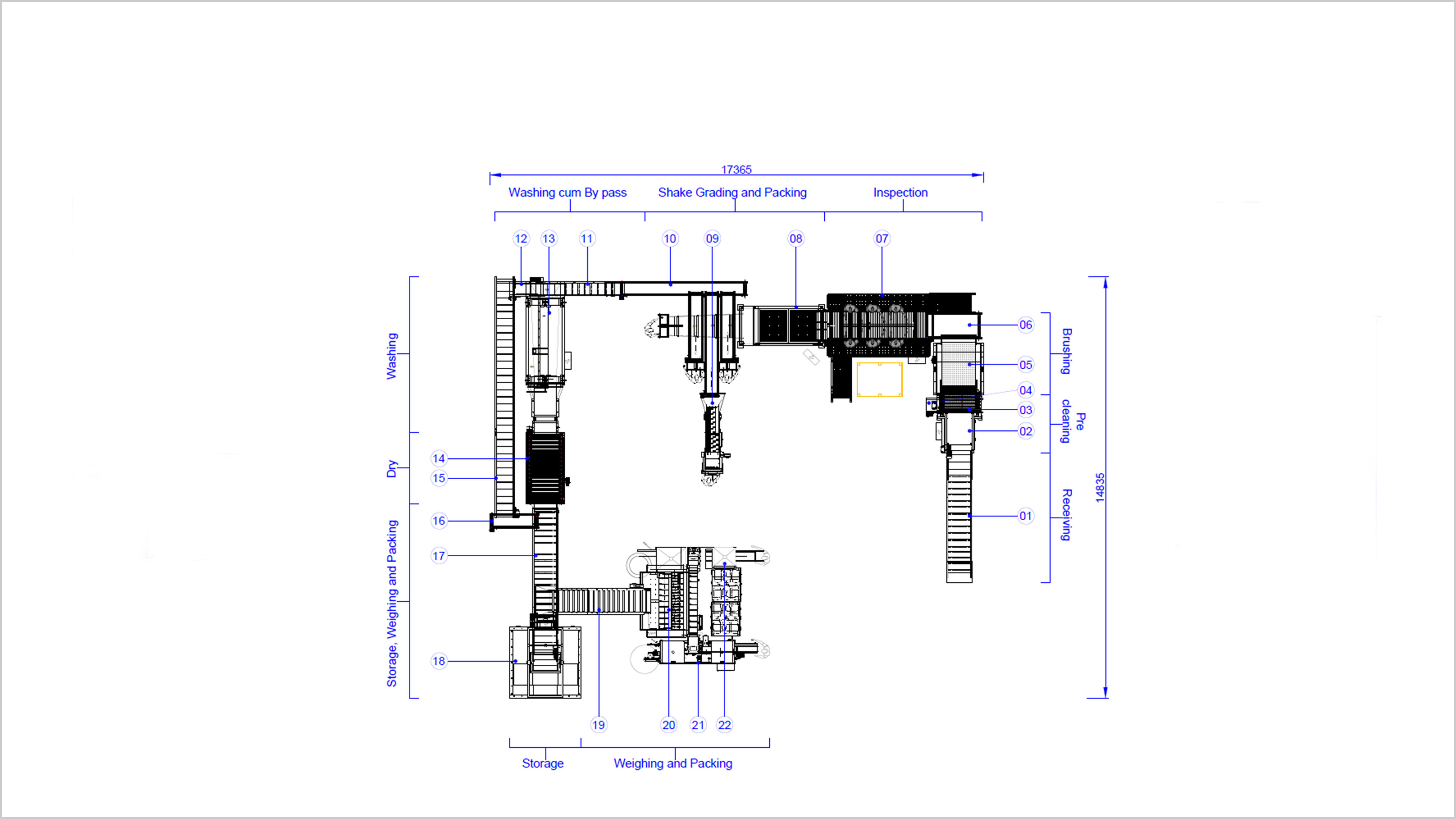

Potato Processing line with a washing , brushing and grading.

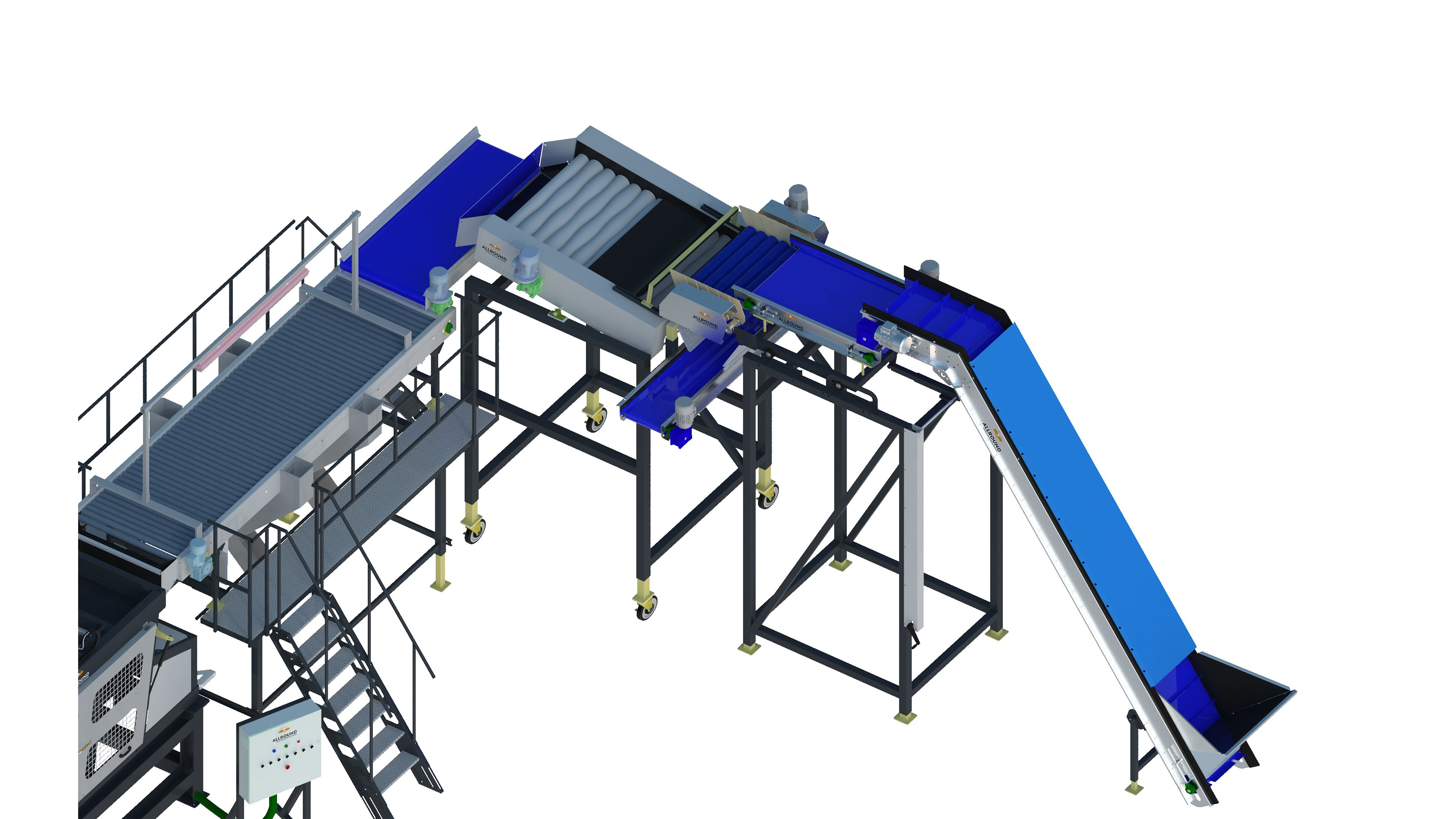

First there is receiving and brushing area. Product pass from swan neck elevator and move from spiral roller set and brusher to reach the inspection and grading area.
The Allround Shake grader is designed to grade potatoes according to their square size. The potatoes are fed to the top of the machine on to the top sieve. The sieves in the machine shake in sequential frequencies, which causes the potatoes to move along on the sieves.

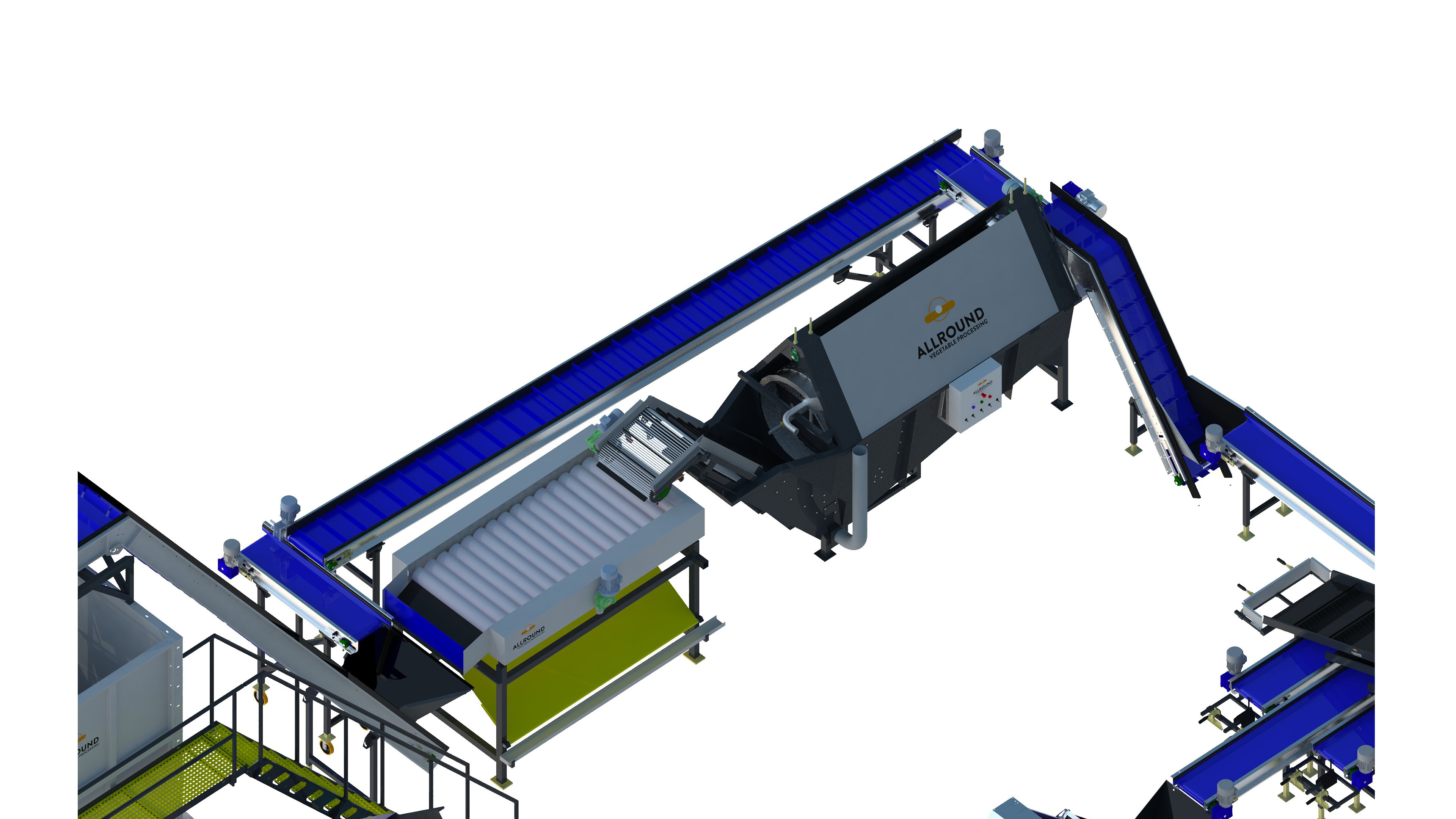

Product reach washing and drying area after inspection and grading. The washing drum of the Washing machine is designed to agitate produce in the machine. In combination with water, this process gives an optimal cleaning result. The dryer designed to dry potatoes after washing. This is done by felt rollers. After washing and drying product reach to storage and packing area.
Estimated capacity (tons/hour)
| Product | Small | Big |
|---|---|---|
| Seed potatoes | 10 | 12 |
| Table potatoes | 8 | 10 |
Machinary list
| Machines | Type |
|---|---|
| Swan neck elevator | ELK 525/100-60 |
| Infeed belt | TC 150-80 |
| Spiral roller set | VS 100-5 |
| Waste belt | TB 200-40 |
| Brusher | BR 120-15 |
| Transport belt | TC 200-80 |
| Roller inspection table | RI 400-100 |
| Shake grader | SG 80-4 |
| Weigher | AW 50-2 |
| Transport belt | TC 450-40 |
| Swan neck elevator | ELK 275-125-40 |
| Transport Belt | TC 125-40 |
| Washing machine | U 300 |
| Dryer | DR 100-17 |
| Transport Belt | TCC 850-60 |
| Transport Belt | TC 175-40 |
| Swan neck elevator | ELK 700-125-80 |
| Storage Hopper | SH 25-25-10 |
| Elevator | EL 525-80 |
| Multihead weigher | M 10 (Manter) |
| Rollstock bagger | RSB-M (Manter) |
| Rollstock bagger | RSB-P (Manter) |
