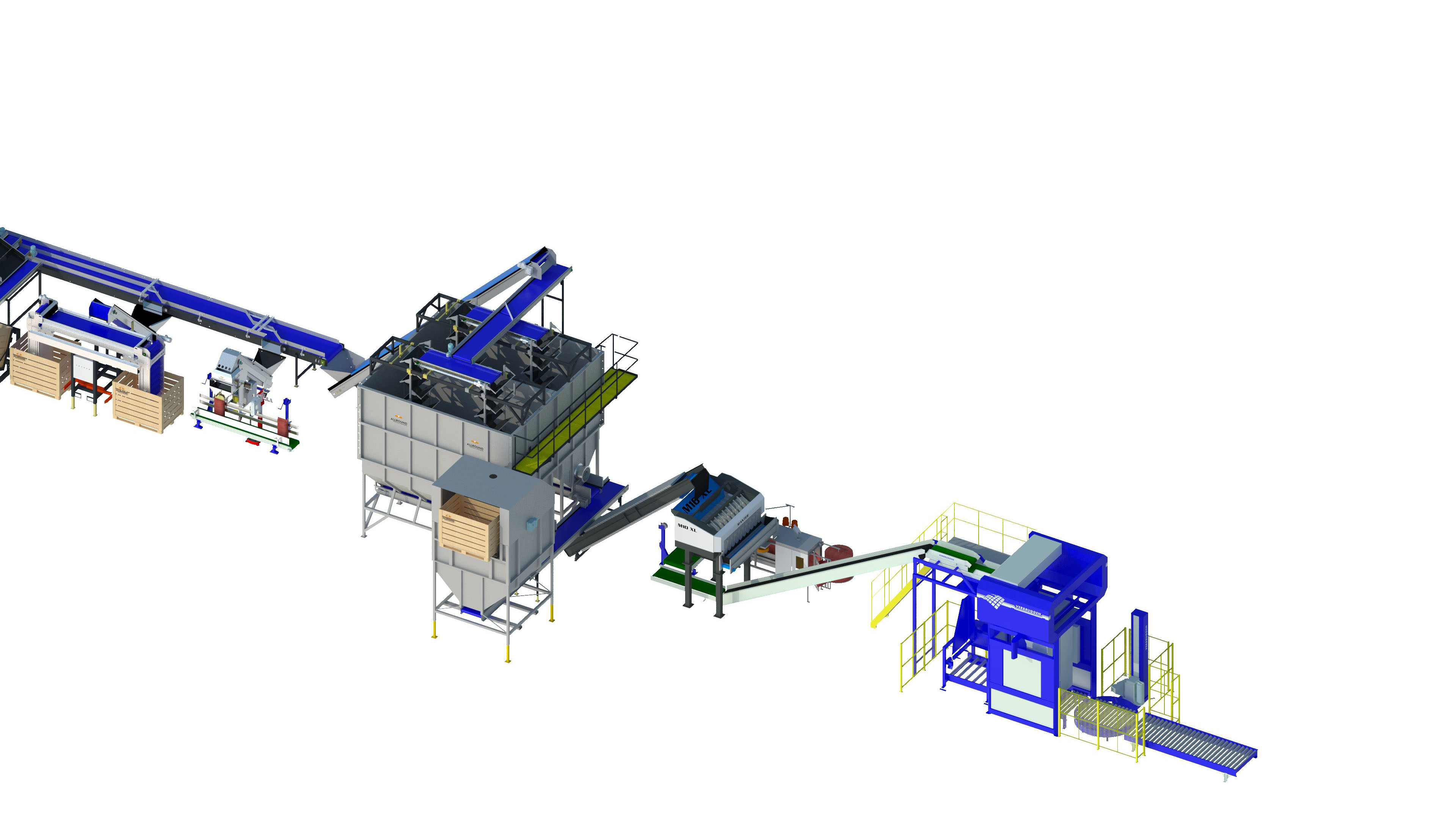

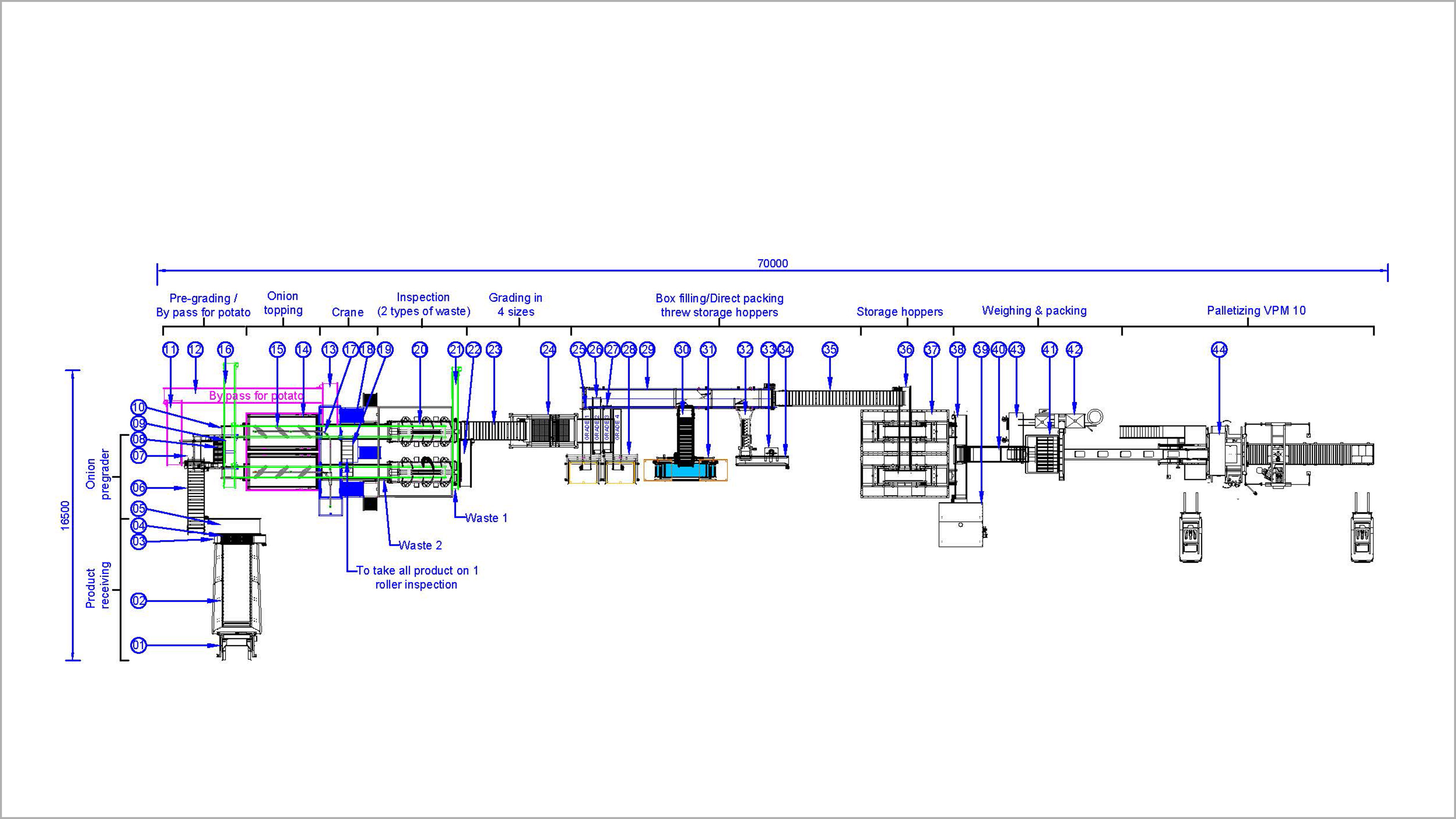

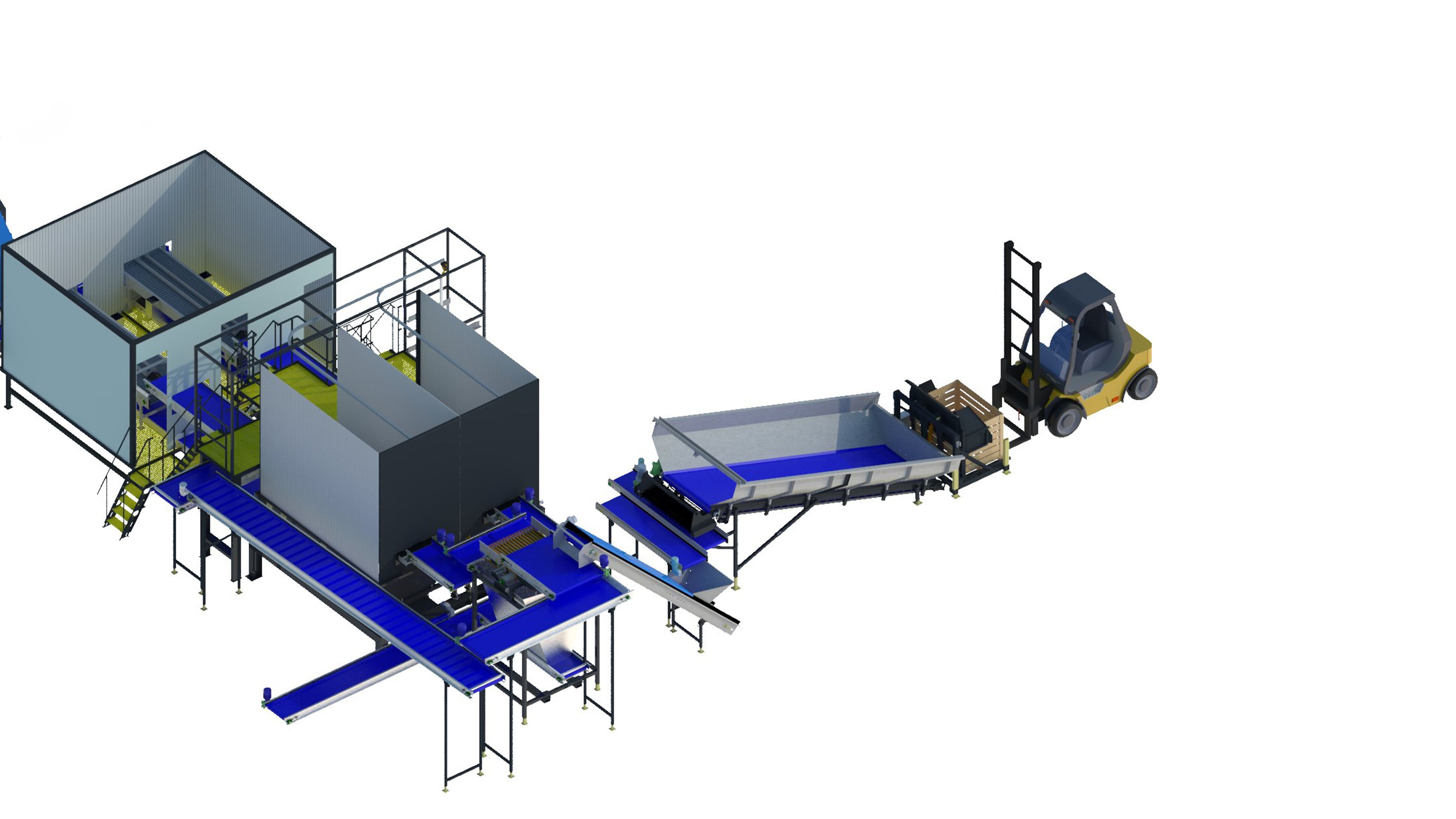

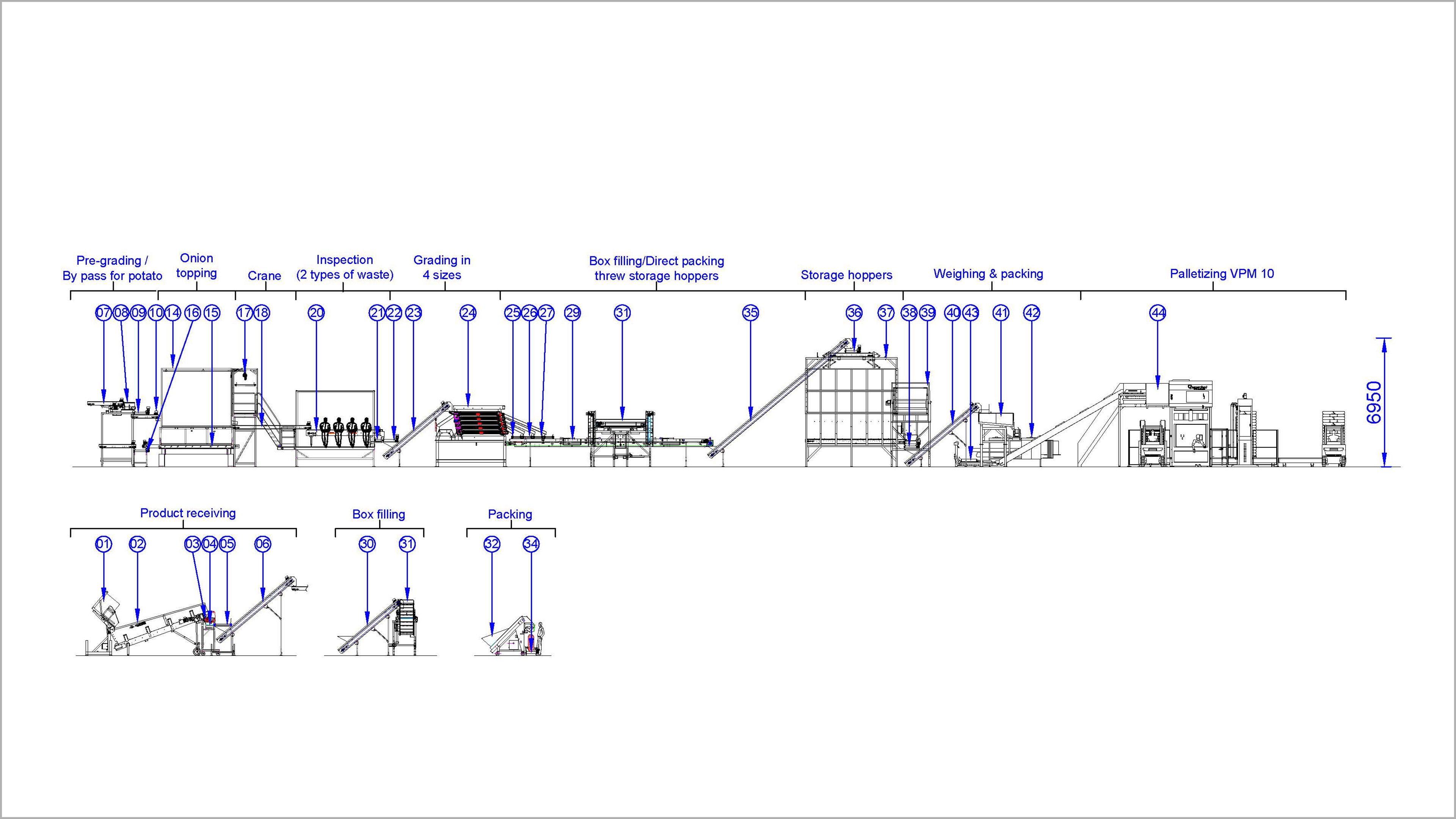

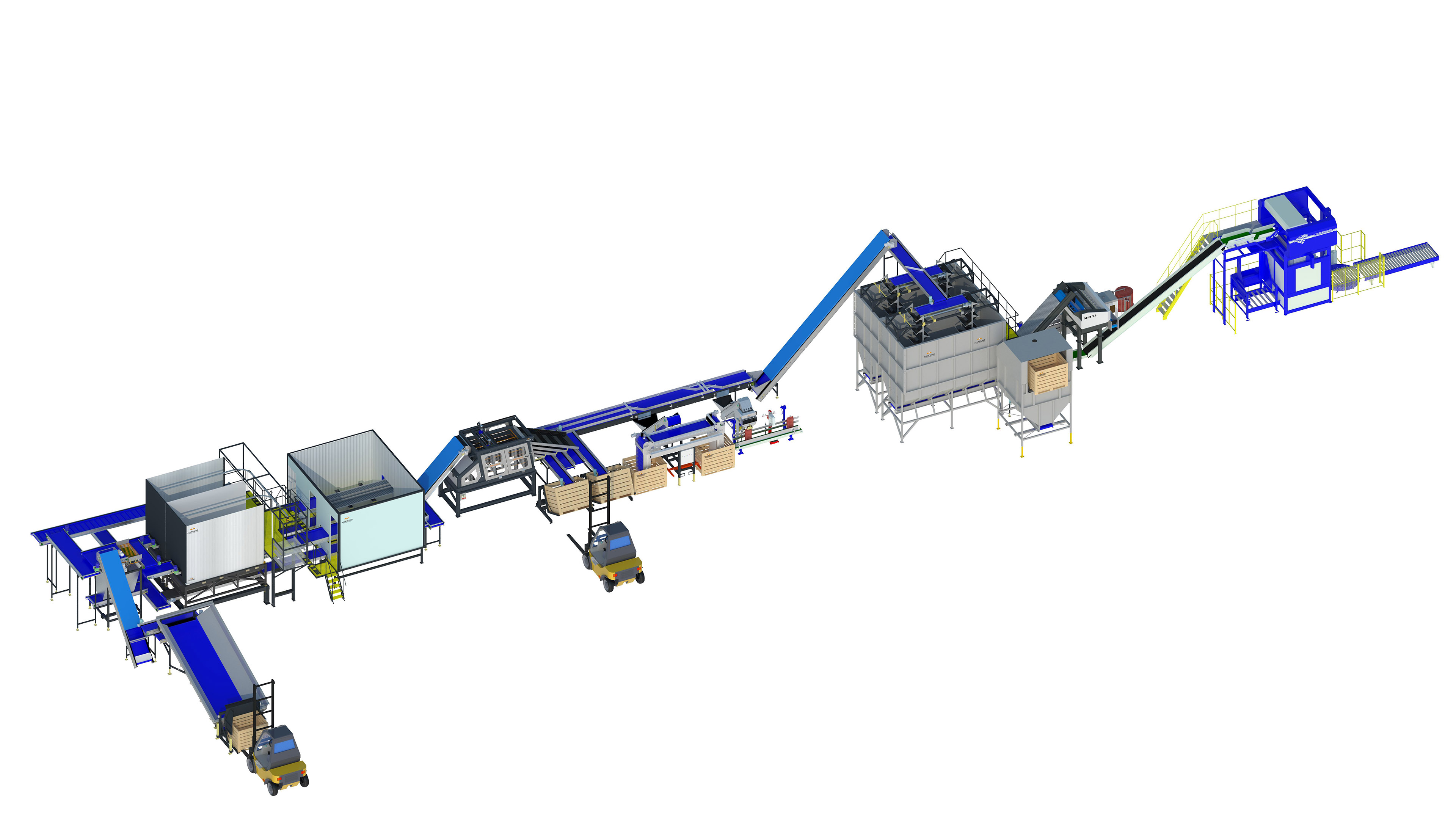

ONION PROCESSING LINE DOUBLE A3 SERIES OVERALL VIEW 3D 2D ONION PROCESSING LINE DOUBLE A3 SERIES RECEIVING AREA ONION PROCESSING LINE DOUBLE A3 SERIES STRING GRADER ONION PROCESSING LINE DOUBLE A3 SERIES ONION TOPPER VIEW ONION PROCESSING LINE DOUBLE A3 SERIES INSPECTION AREA ONION PROCESSING LINE DOUBLE A3 SERIES BOX FILLING AREA ONION PROCESSING LINE DOUBLE A3 SERIES WEIGHER, BAGGER AND PALLETIZER AREA 3D 2D TOPVIEW ONION PROCESSING LINE DOUBLE A3 SERIES SIDEVIEW 3D 2D TOPVIEW ONION PROCESSING LINE DOUBLE A3 SERIES SIDEVIEW

Onion processing line double A3 series

Category: Onion lines

​The Double A3 line is the topper of the range and can do up to 24 tons per hour!

No drawing






Estimated capacity (tons/hour)

 Product Small Big
Onions 18 24
Set onions 12 12

Machinary list

Machines Type
Box tipper  Z 160
Hopper B 120-450
Spiral roller set VS 120-6
Transport belt TB 300-40
Transport belt TB 350-80
Elevator ELR 525-90
Transport belt TB 200-120

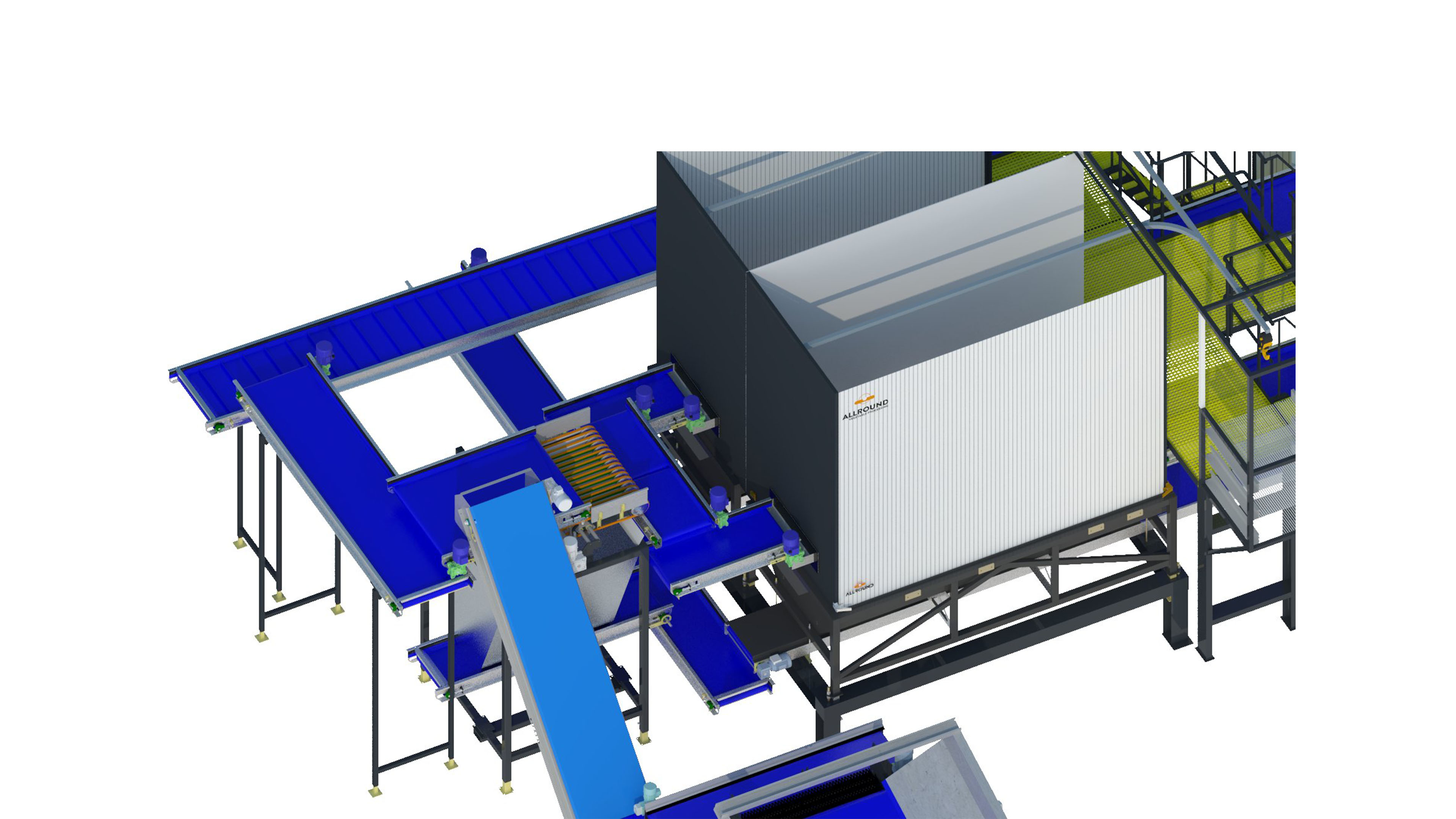

String grader S 700-17
Transport belt TC 100-60
Transport belt TC 150-60
Transport belt TC 375-80
Transport belt TCC 925-80
Transport belt TC 250-80

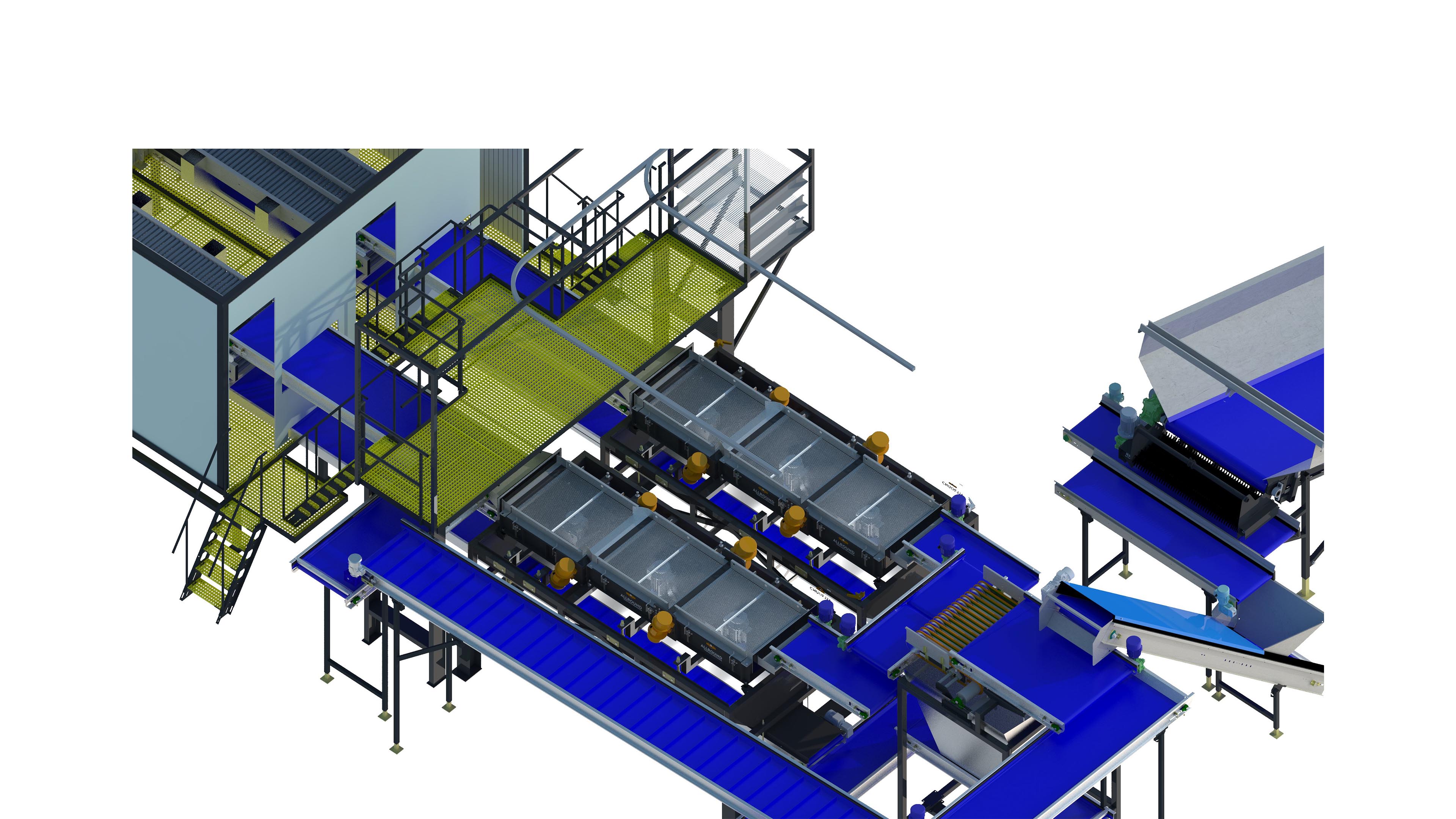

Onion topper A 3
Transport belt TB 1225-60
Transport belt TB 725-40
Crane
 Transport belt TC 425-80
 Transport belt TCC 250-60

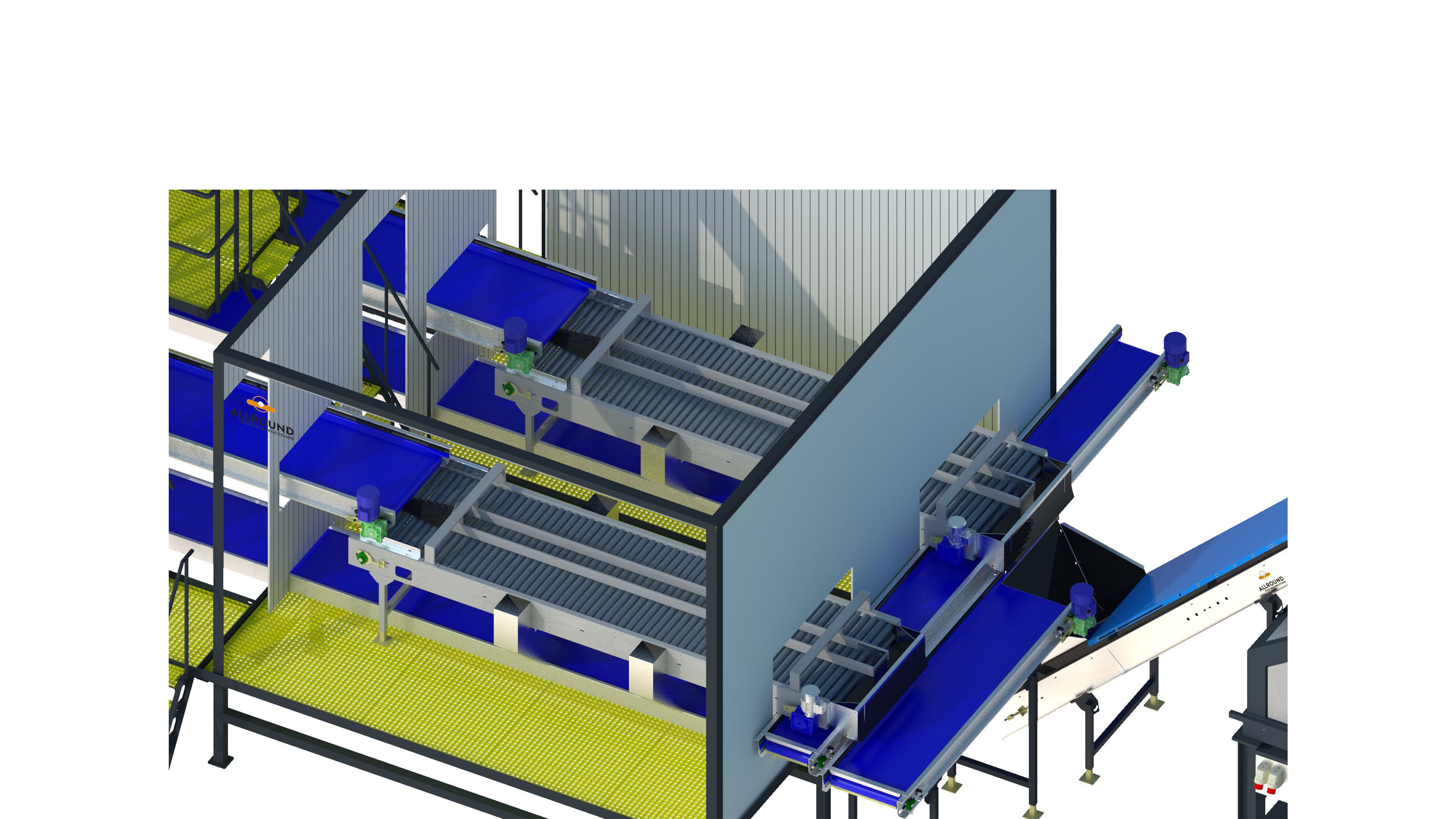

 Inspection unit RI 400-100
 Transport belt TB 700-40
 Transport belt TC 300-80
 Elevator ELR 450-100
 Shake grader SG 120-4
 Transport belt TB 350-40
 Transport belt TB 325-40
 Transport belt TB 275-40

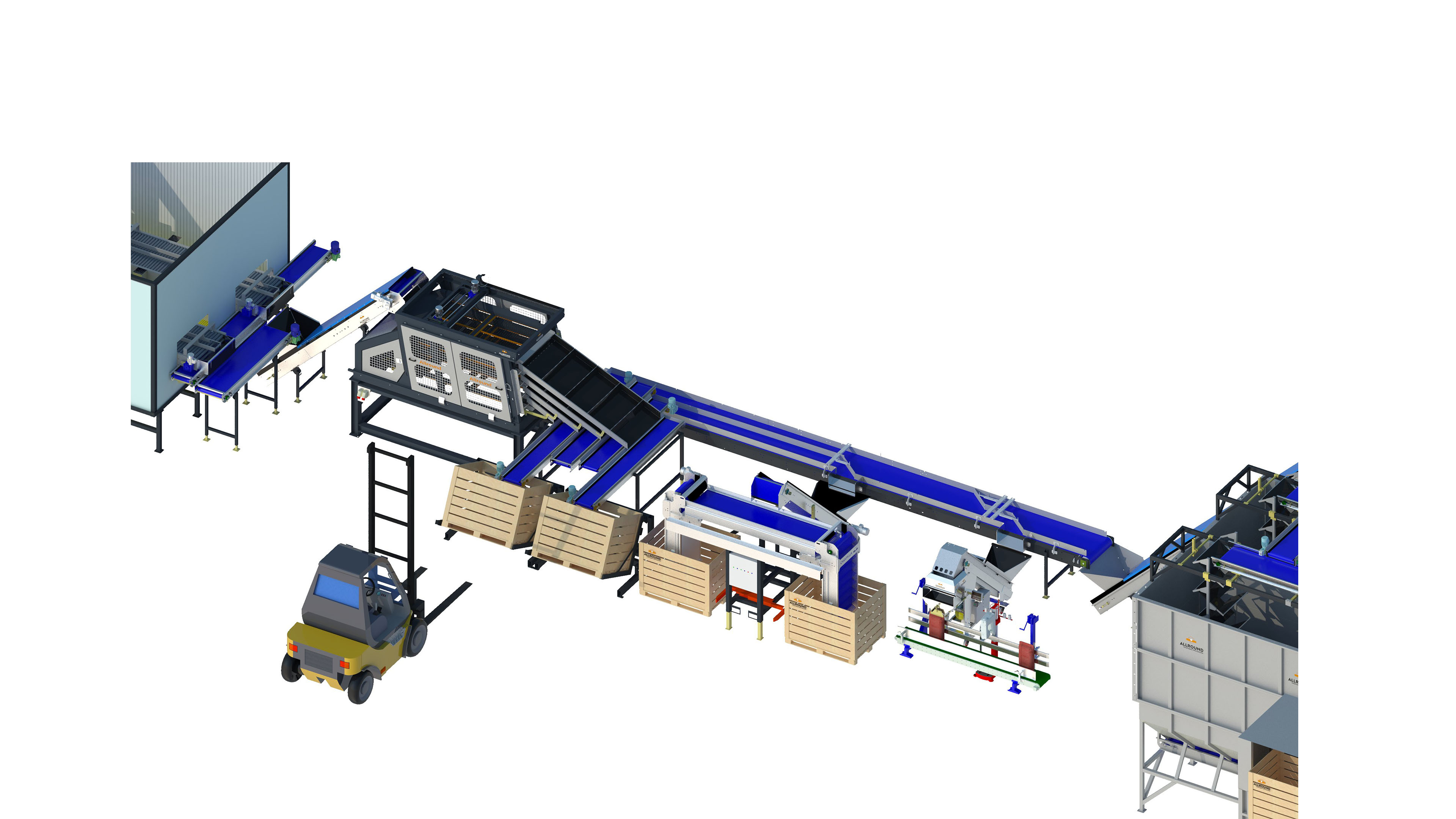

 Box filler ZR 160
 Distribution belt 1200-100
 Elevator ELR 400-80
 Box filler VBF 70
 Weigher AW 50-02 S
 Bag closer PL-4
 Sewing belt 300-50
 Elevator ELR 925-80
 Transport belt TC 500-60
 Storage hopper SH 50-25-32
Transport belt TC 475-60
Storage cum box tipper SHB 160-3
Elevator EL 450-80
Multihead weigher M 10 (Manter)
Roll stock bagger RSB-M (Manter)
Bag receiving belt 225-80
Palletizer VPM 10 (Verbruggen)
