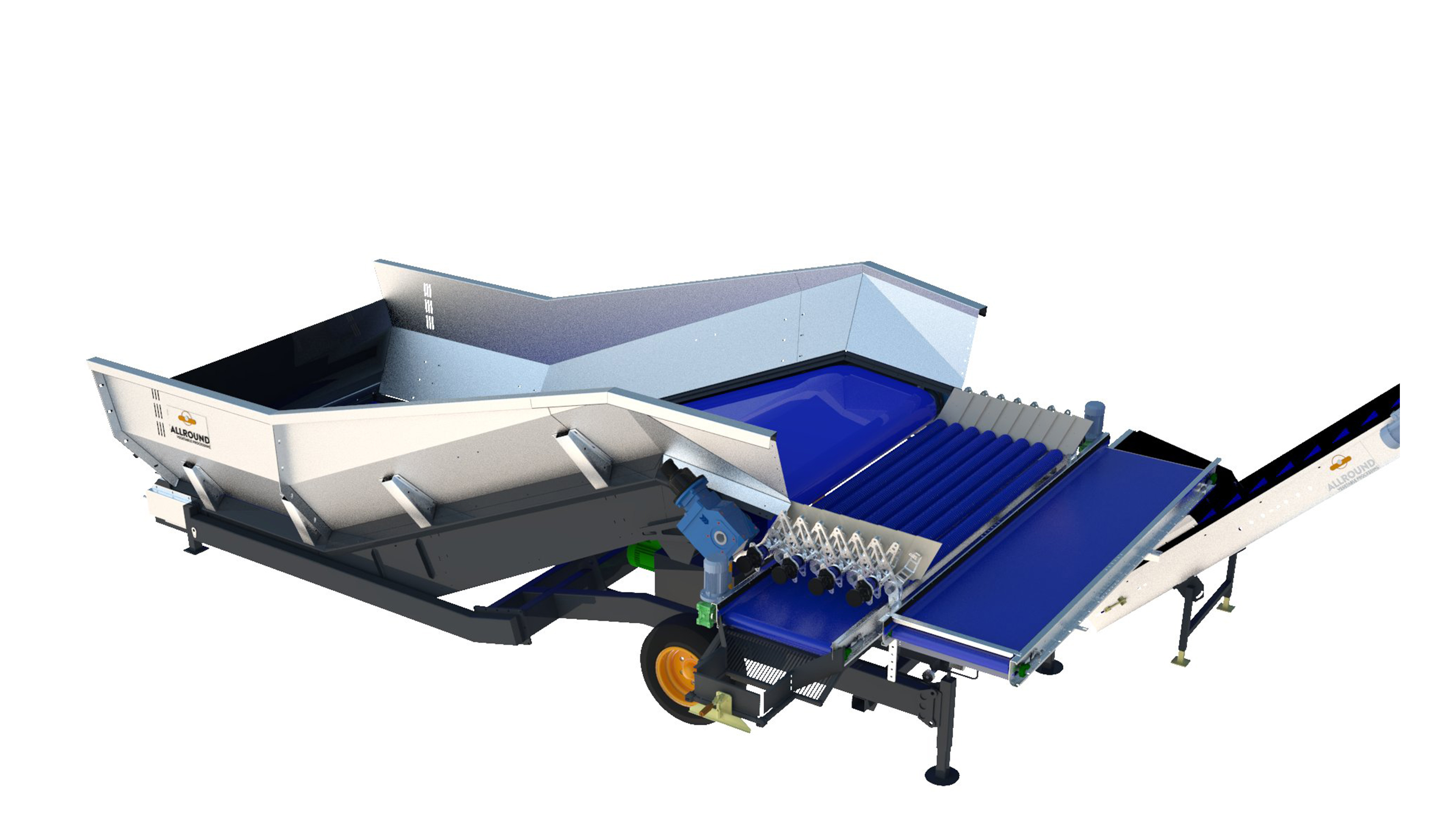

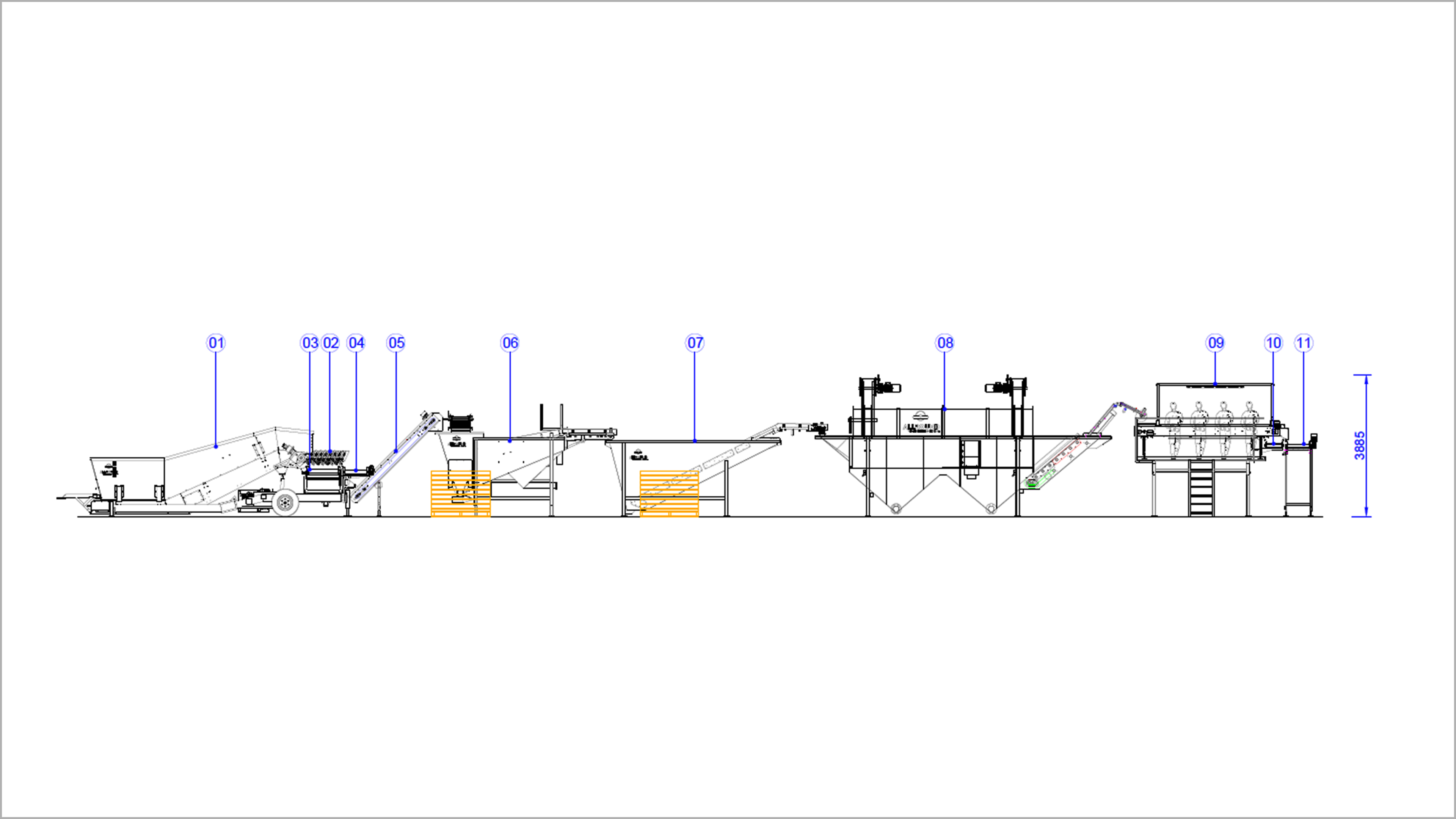

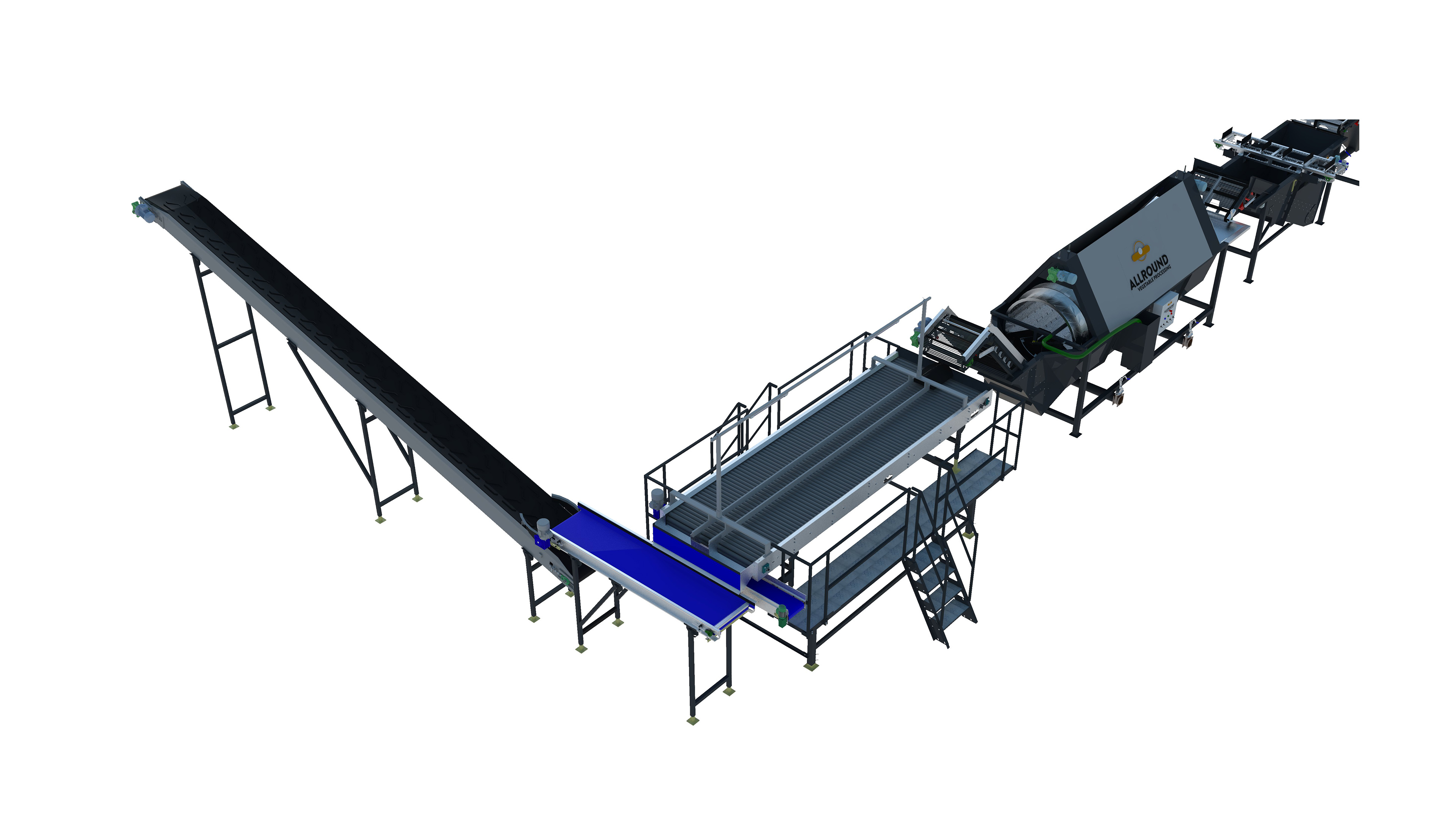

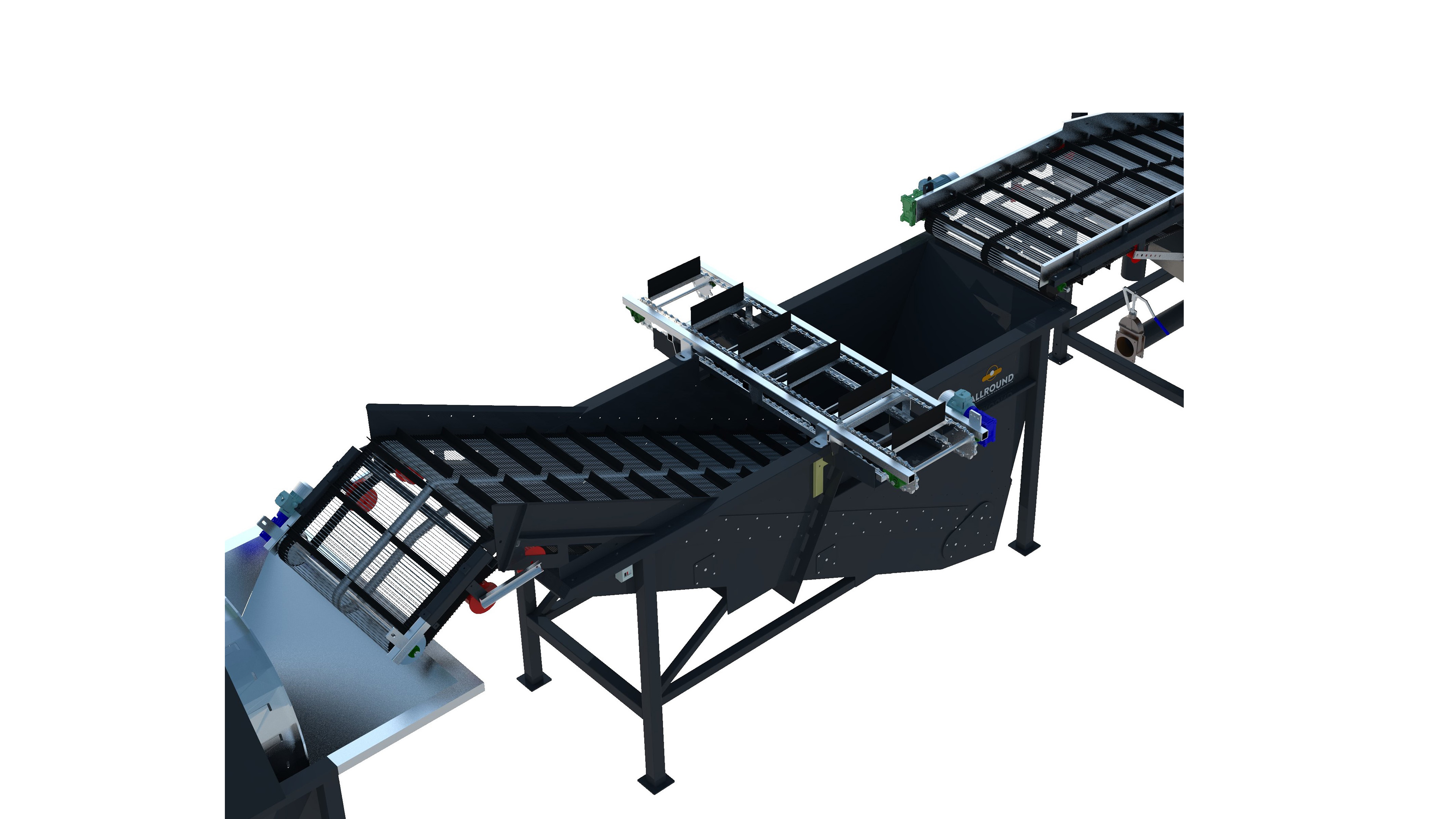

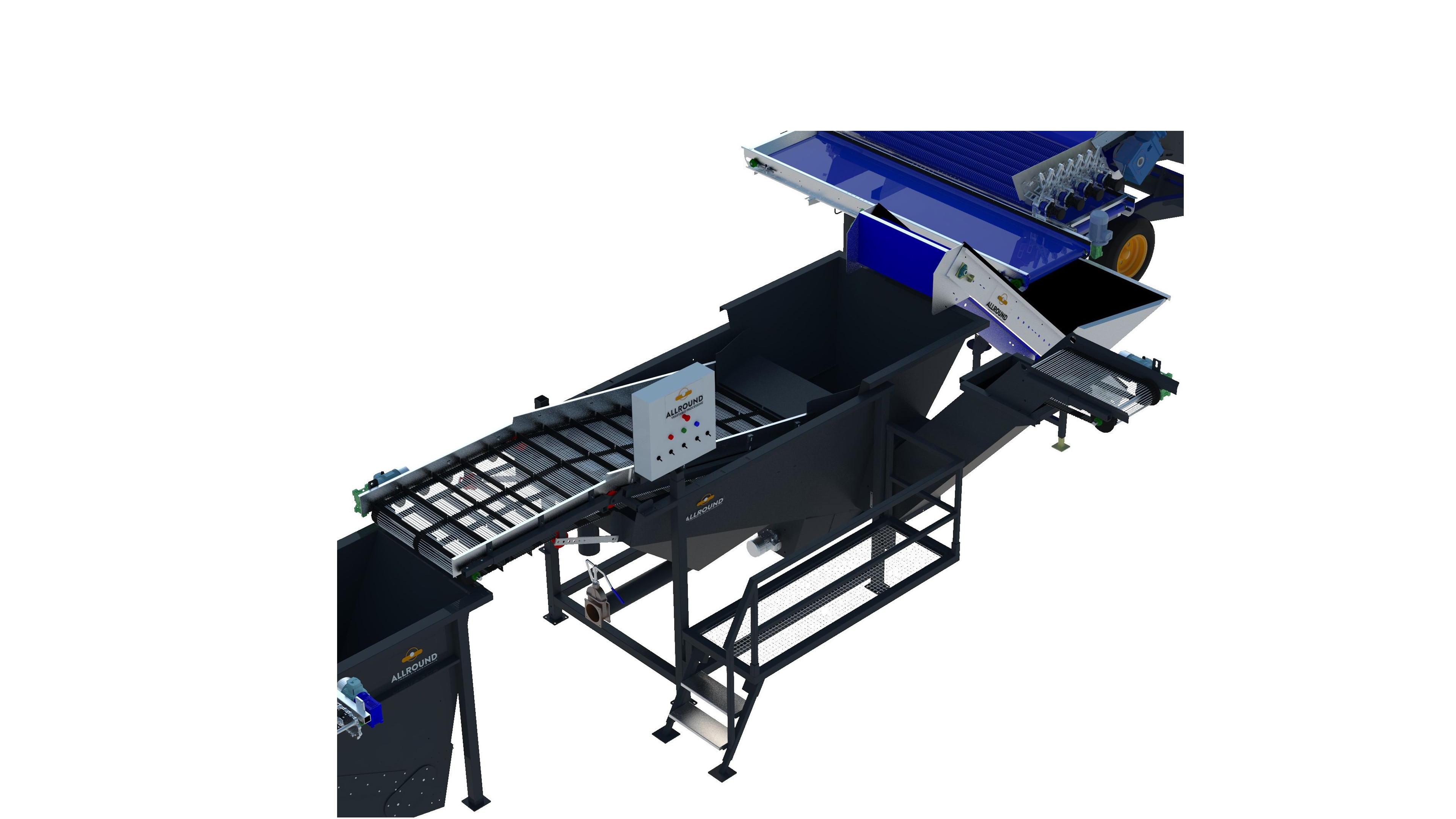

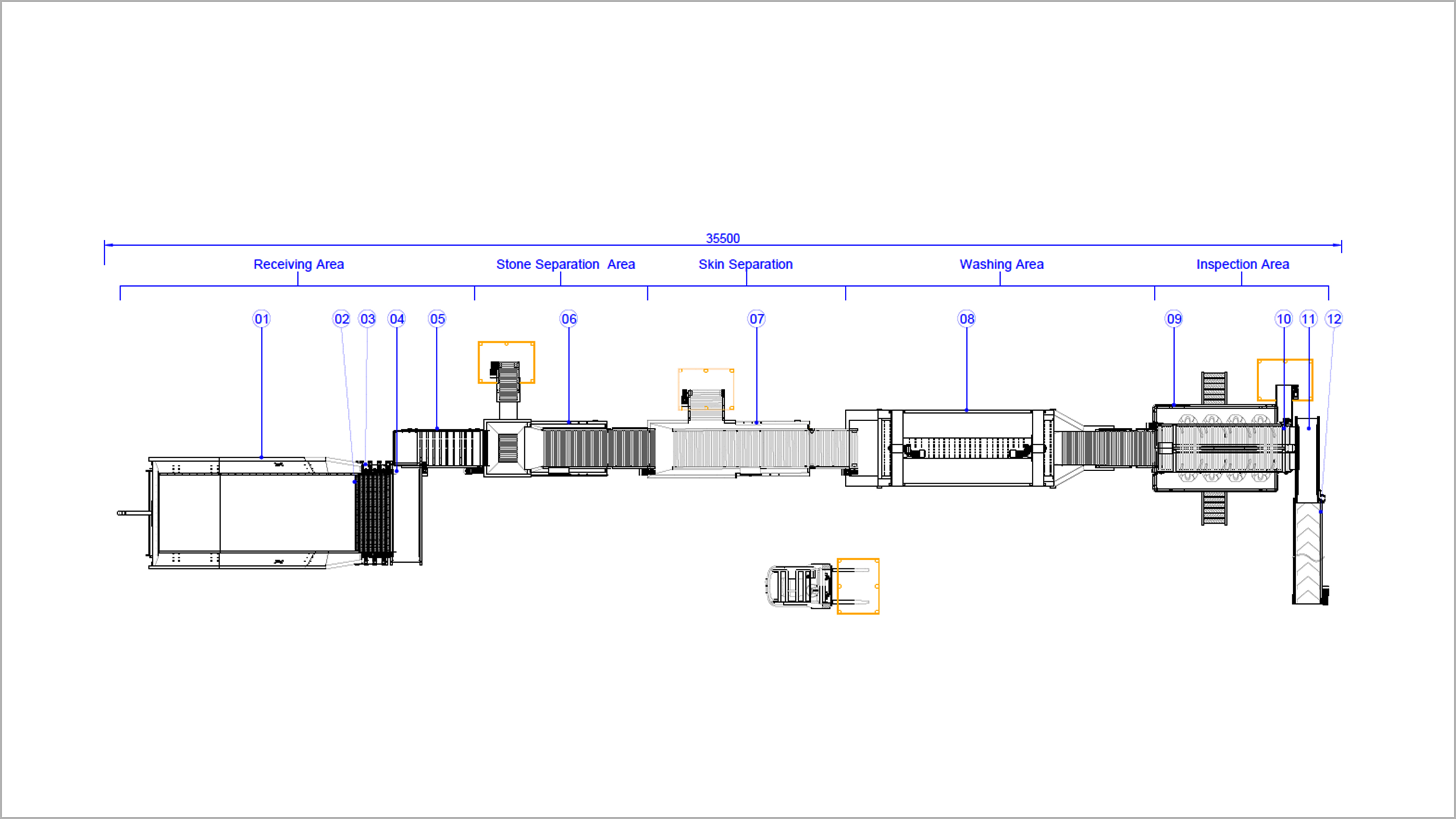

Industrial potato washing line 500 series (1) OVERALL VIEW 3D 2D Industrial potato washing line 500 series (1) RECEIVING AREA Industrial potato washing line 500 series (1) DESTONER AREA Industrial potato washing line 500 series (1) SKIN SEPERATOR AREA Industrial potato washing line 500 series (1) WASHING AREA Industrial potato washing line 500 series (1) INSPECTION AND OUTFEED AREA TOPVIEW SIDEVIEW Industrial potato washing line 500 series (1) 3D 2D TOPVIEW SIDEVIEW Industrial potato washing line 500 series (1) 3D 2D

Industrial Potato washing line 500 series (1)

Category: Potato lines

This line is designed to wash industrial potatoes. The principle is that a box is placed in the machine, which then slowly tilts the box so that a hopper or elevator is filled. This is line include the washing machine U 500. The U 500 are designed to operate with a water basin. In this water basin, the water used in the machine is recirculated to be used again.

No drawing






Estimated capacity (tons/hour)

 Product Heavy soil Light soil
Industrial potato’s 40 70

Machinary list

Machines Type
Receiving hopper ARH 240-600
Spiral roller set VS 240-8
Waste belt TB 300-80
Product belt TB 300-60
Elevator EL 325-100
Destoner D 150
Skin seperator SK 150
Washing machine U 500
Roller inspection table RI 120-500
Waste belt TB 250-40
Transport belt TC 250-60
Through Belt 70-length required
