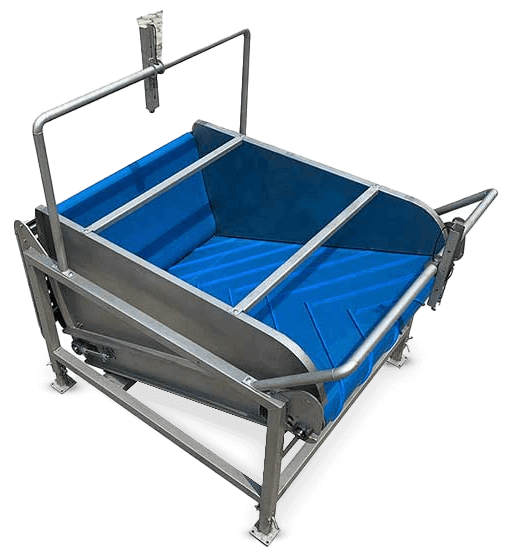

Even flow hopper

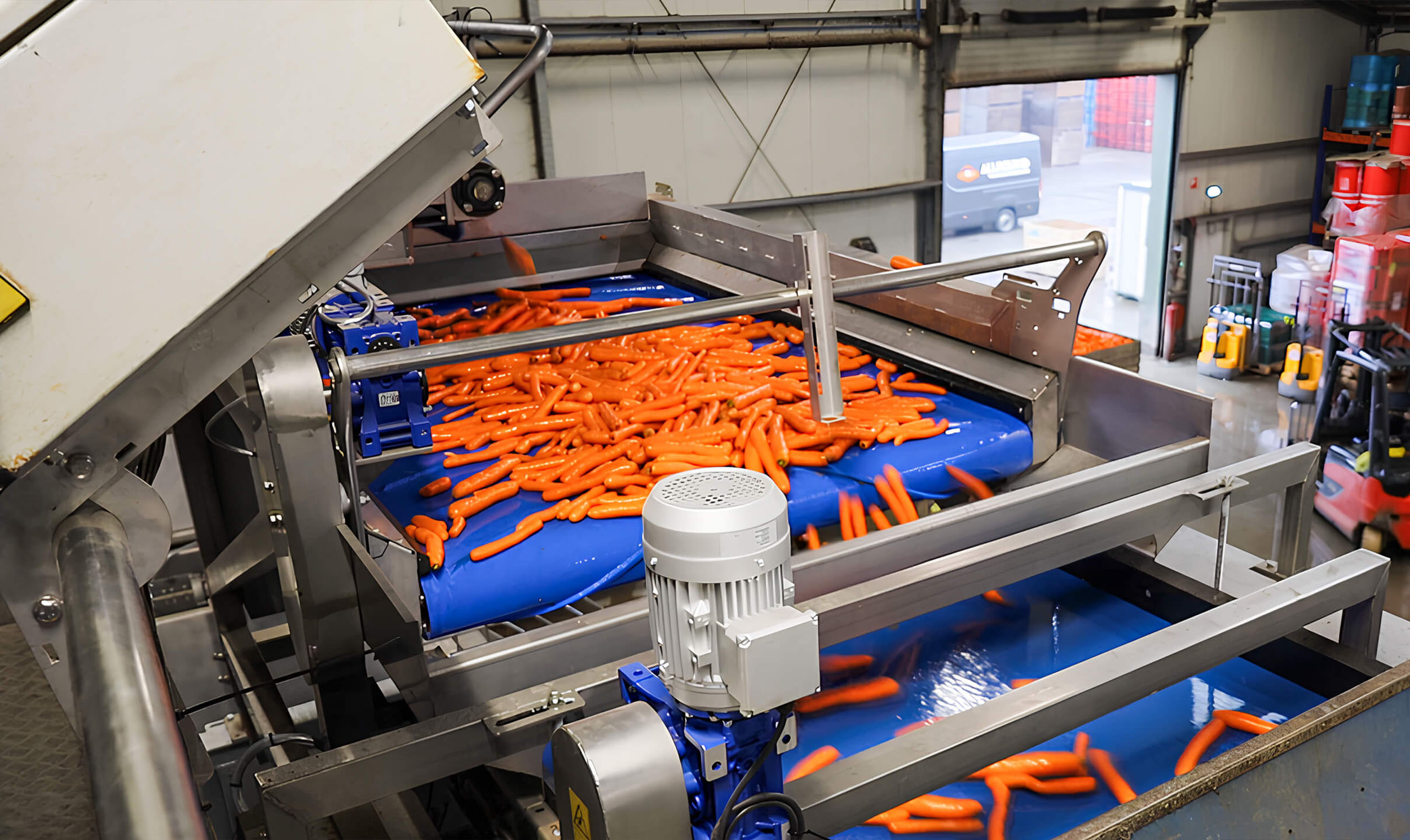

The even flow hopper is designed for buffering and dosing. The horizontal belt lowers as it is being filled, or lifted when the machine is emptying. Mostly the even flow hopper is used in front of a weighing machine or an optical sorter.

Types and specifications

EF 60-0.4

Width of the belt (cm) 60
Approximate content (m3) 0.4
Drawing

EF 80-0.6

Width of the belt (cm)  60
Approximate content (m3) 0.6
No Drawing
Evenflow hopper 100-0.7

EF 100-0.7

Width of the belt (cm) 100
Approximate content (m3) 0.7
Drawing

EF 120-0.9

Width of the belt (cm) 120
Approximate content (m3) 0.9
Drawing

EF 140-2

Width of the belt (cm) 140
Approximate content (m3) 2
No Drawing

EF 160-2.5

Width of the belt (cm) 160
Approximate content (m3) 2.5
No Drawing

EF 180-2.7

Width of the belt (cm) 180
Approximate content (m3) 2.7
No Drawing

EF 200-3

Width of the belt (cm) 200
Approximate content (m3) 3
No Drawing

Options

Material and treatment (frame)

  • Painted mild steel
    Frame is made from painted mild steel. The bearings and drive/idle rollers are from mild steel

  • Stainless steel
    Frame is made from stainless steel. The bearings and drive/idle rollers are from mild steel

Electrical control

  • Stand-alone
    Motors, necessary sensors, switch box and control box

  • No electric
    Motors and necessary sensors only. Wiring, additional sensors and/or control panel are not included

  • Central control in line
    Motors and necessary sensors

Material and treatment (electrical panel)

  • Painted mild steel
    The electrical panel is made from painted mild steel

  • Stainless steel
    The electrical panel is made from stainless steel

Dosing sensor

  • A dosing sensor detects how much product is on the belt and adjusts the output rate of the hopper accordingly (automatic capacity control)
