Project Description

100 DAY LINE OVERALL VIEW 3D 2D 100 DAY LINE TOPVIEW SIDEVIEW 3D 2D ISOMETRICVIEW 100 DAY LINE 3D 2D SIDEVIEW TOPVIEW ISOMETRICVIEW 100 DAY LINE 3D 2D ISOMETRICVIEW TOPVIEW SIDEVIEW

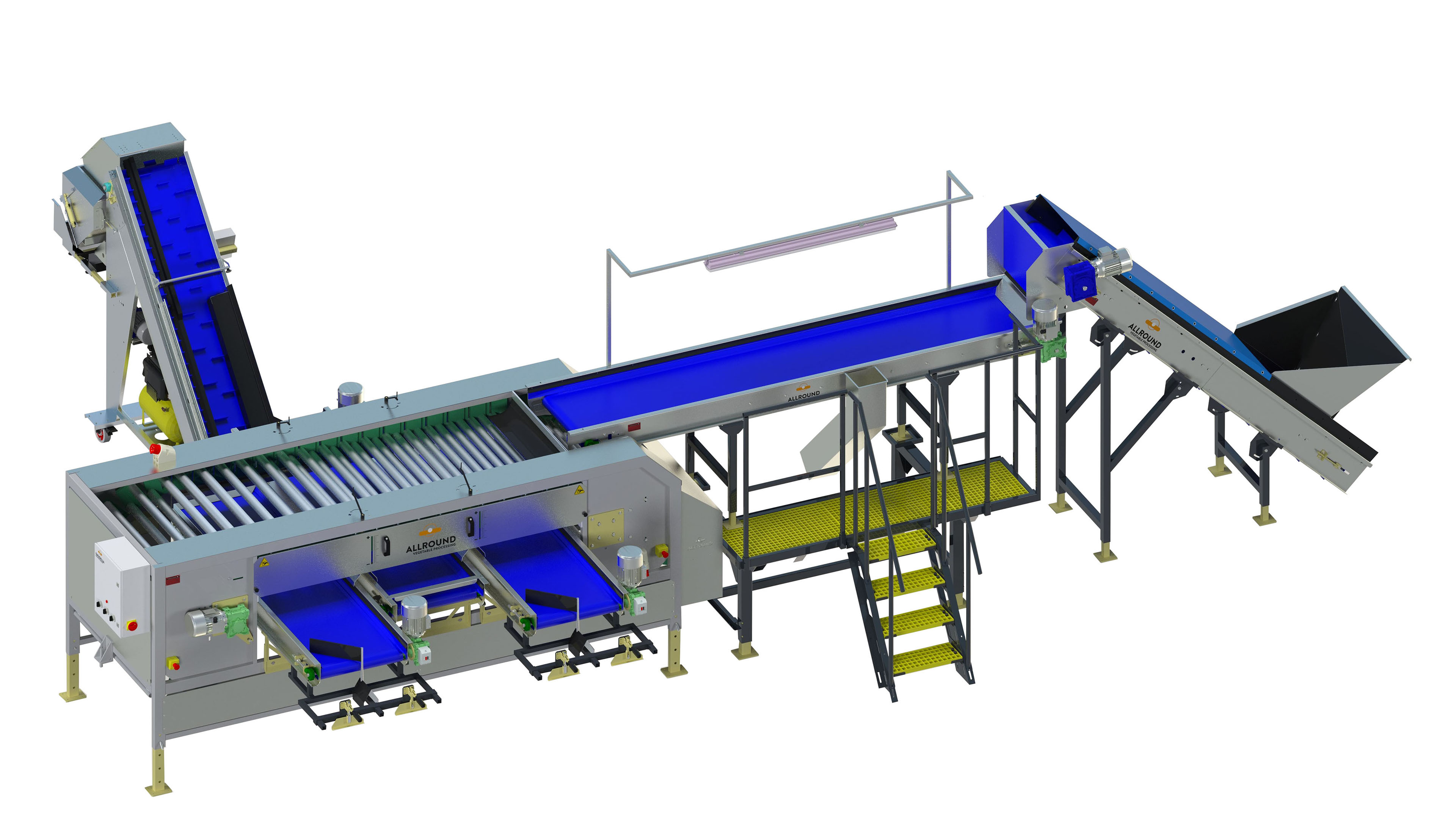

100 day line

Category: Potato lines, Onion lines, Carrot lines

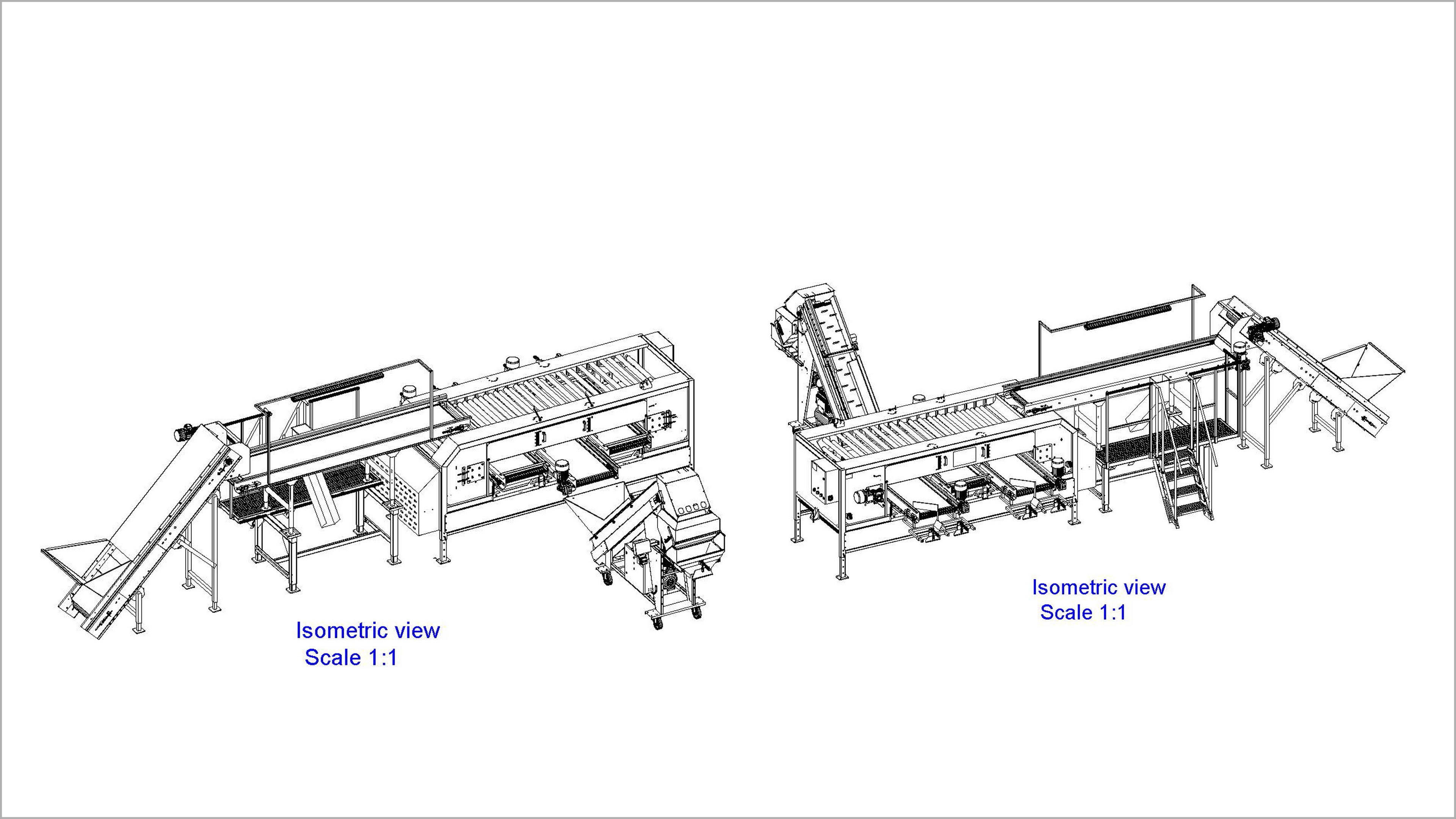

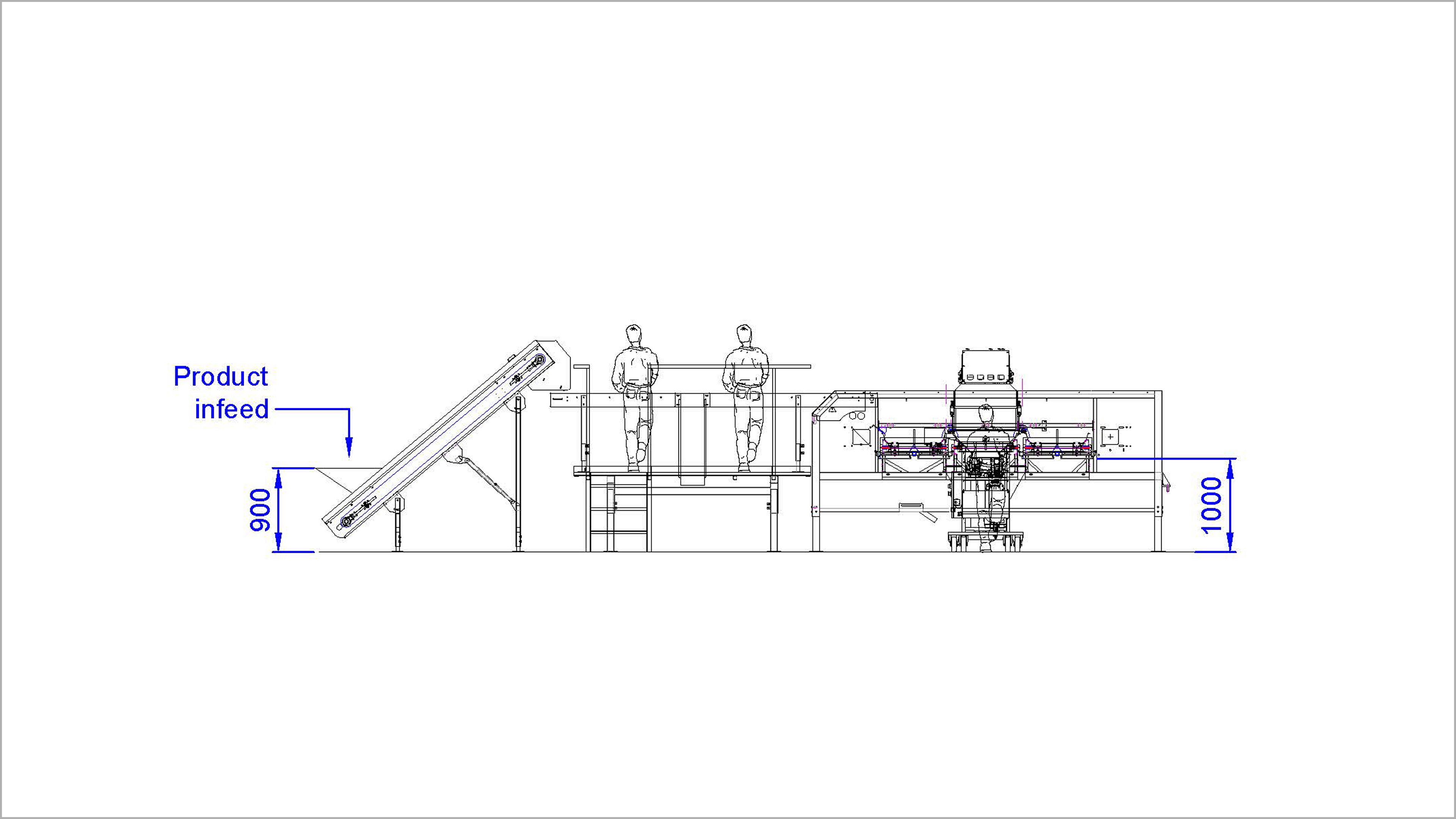

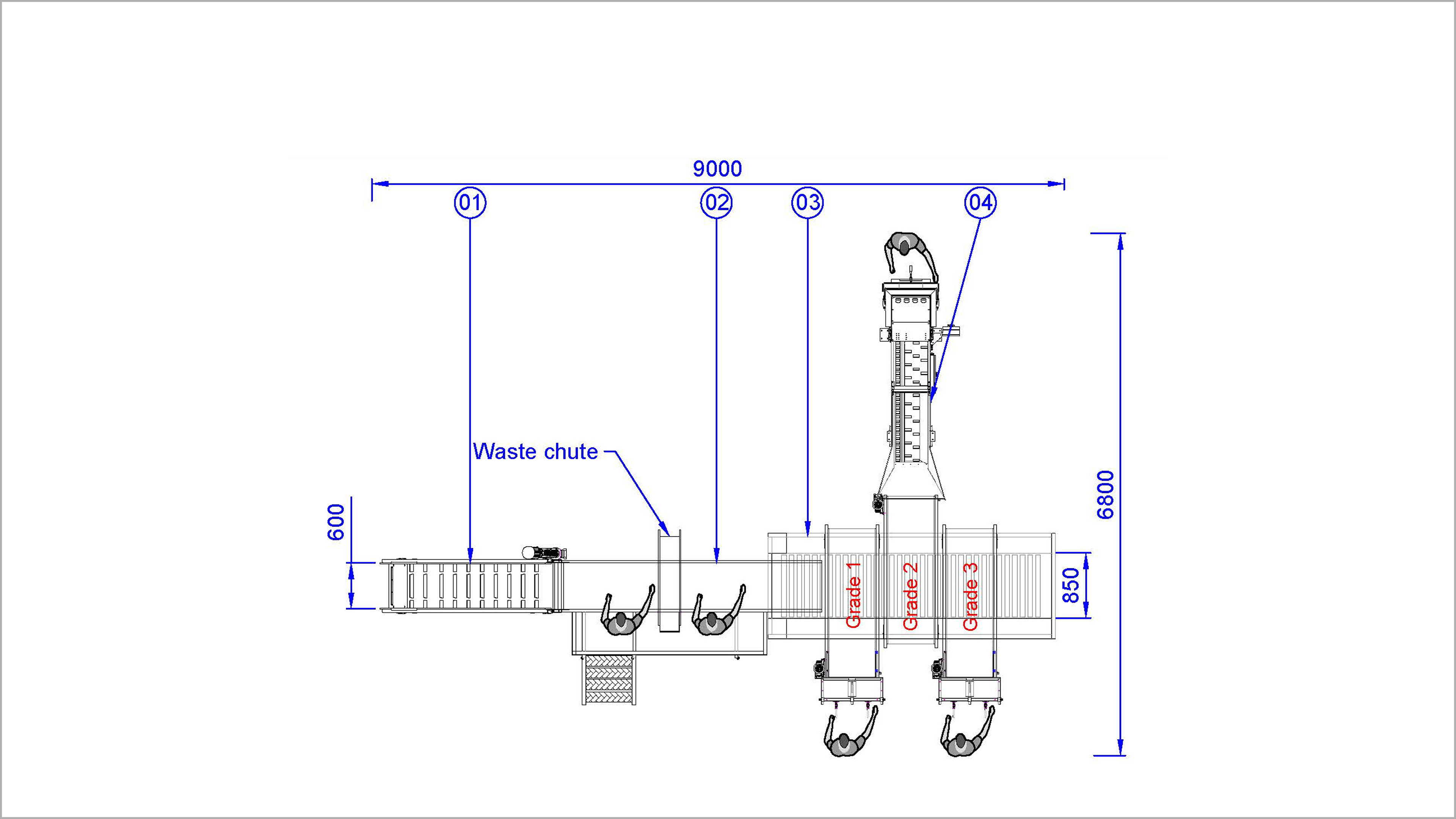

Drawing






Estimated capacity (tons/hour)

 Product Small Big
 Potatoes 6 7
 Onions 6 7
 Carrots 3 4

Machinary list

Machines Type
Elevator EL 60-300
Inspection belt  IB 60-350
Radial grader  R 80-70-3
Automatic weighing machine  AW 50-2
